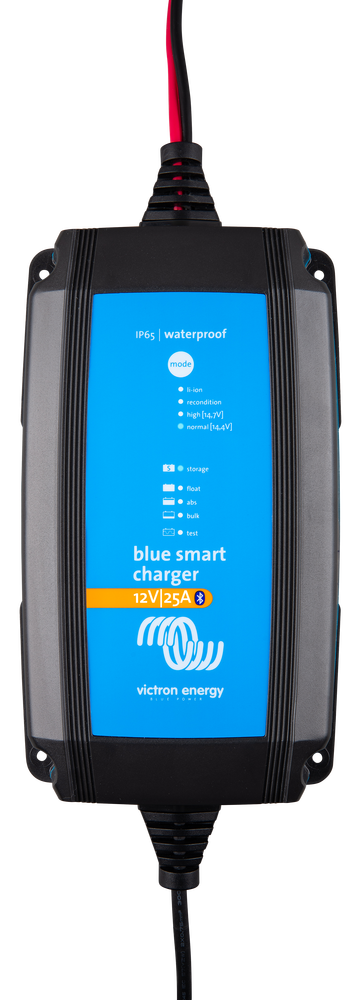

Victron Blue Smart IP65 12/25 Battery Charger: The Ultimate Charging Solution

The Victron Blue Smart IP65 12/25 Battery Charger is an advanced, intelligent charger designed to provide the most efficient and reliable charging experience for your batteries. With its robust build, cutting-edge technology, and user-friendly features, this charger is ideal for those who need a reliable solution for charging 12V batteries in various applications, including automotive, marine, and industrial settings.

Key Features:

High Efficiency: The Victron Blue Smart IP65 12/25 is designed with efficiency in mind. It operates with an efficiency rate of up to 95%, which ensures that less energy is wasted as heat, allowing for cooler and more economical operation.

Seven-Stage Adaptive Charging: This charger employs a sophisticated seven-stage charging algorithm that optimises each charge cycle to ensure your battery is charged safely and effectively. The stages include Test, Bulk, Absorption, Recondition, Float, Storage, and Refresh, each designed to maintain your battery’s health and extend its lifespan.

Bluetooth Smart Functionality: With built-in Bluetooth, you can monitor and control the Blue Smart IP65 12/25 directly from your smartphone or tablet using the VictronConnect app. This allows you to keep track of the charging status, adjust settings, and  perform firmware updates from a distance.

Durable and Waterproof: The IP65 rating means the charger is fully protected against dust and water ingress. This makes it perfect for outdoor use or in harsh environments where the charger might be exposed to the elements.

Adaptive Absorption: The adaptive absorption feature monitors the battery’s response during the charging process and adjusts the absorption time accordingly, ensuring the battery is fully charged without being overcharged.

Temperature Compensation: The Victron Blue Smart IP65 12/25 automatically adjusts the charging voltage based on the ambient temperature, ensuring optimal charging performance in any climate. This feature is especially useful in extreme weather conditions.

Reconditioning Mode: This mode is designed to reverse the effects of battery sulfation, a common issue that can occur when a lead-acid battery is undercharged. By periodically using the reconditioning mode, you can extend the life of your batteries.

Low Current Mode: For smaller batteries, the low current mode reduces the maximum charge current, preventing potential damage to batteries that require less power.

Silent Operation: Unlike many chargers that use fans for cooling, the Blue Smart IP65 12/25 is designed to operate silently, making it ideal for use in quiet environments or during the night.

Technical Specifications:

Input Voltage Range: 180-265V AC, 45-65Hz
Output Voltage: 12V
Charge Current: 25A (Normal mode), 10A (Low current mode)
Efficiency: Up to 95%
Protection Category: IP65 (splash and dustproof)
Operating Temperature: -40°C to +50°C (full rated output up to 30°C)
Dimensions: 75 x 140 x 240mm
Weight: 1.9 kg
Battery Types Supported: Lead-acid (AGM, GEL, Calcium), LiFePO4
Charge Algorithm: Seven-stage adaptive with optional recondition mode
Bluetooth Connectivity: Yes, via VictronConnect app
Certifications: EN 60335-1, EN 60335-2-29, EN 55014-1, EN 61000-6-3, EN 61000-3-2

Installation and Setup:

Installing and setting up the Victron Blue Smart IP65 12/25 Battery Charger is straightforward, thanks to its user-friendly design. Here’s a step-by-step guide to getting your charger up and running:

Unpack the Charger: Ensure that all components are present, including the charger itself, the DC cables, and the AC power cord.

Connect the DC Cables: Start by connecting the red and black DC cables to the charger, then the battery terminals. Ensure the connections are secure and that the terminals are clean to avoid any potential issues.

Connect to AC Power: Plug the AC power cord into a mains outlet. The charger will power up automatically, and the LEDs on the charger will indicate the current status.

Select the Appropriate Mode: Using the MODE button on the charger, cycle through the available charge modes (Normal, High, or Li-ion) until the LED corresponding to your desired mode is illuminated.

Monitor via Bluetooth: For a more detailed view of the charging process, download the VictronConnect app on your smartphone or tablet. Pair your device with the charger via Bluetooth to monitor the charging status, set parameters, or update the firmware.

Charging Cycle: The charger will automatically proceed through the charging stages. You can observe the progress through the LEDs or via the VictronConnect app.

Completion: Once the battery is fully charged, the charger will enter Float mode, maintaining the battery at 100% charge. You can safely disconnect the charger from the battery and AC outlet at this stage.

Maintenance Charging: If the battery is not in use, the charger can be left connected to maintain the battery in Storage mode, which helps extend battery life by preventing sulfation.

The Victron Blue Smart IP65 12/25 Battery Charger is a top-tier charging solution that offers reliability, efficiency, and convenience. Its advanced features like Bluetooth connectivity, seven-stage charging algorithm, and robust design make it an excellent choice for anyone looking to maintain their batteries in peak condition. Whether you need to charge a battery for a vehicle, boat, or industrial equipment, the Blue Smart IP65 12/25 is designed to meet your needs with ease and precision. Choose the Victron Blue Smart IP65 12/25 Battery Charger for a hassle-free and highly efficient charging experience.
