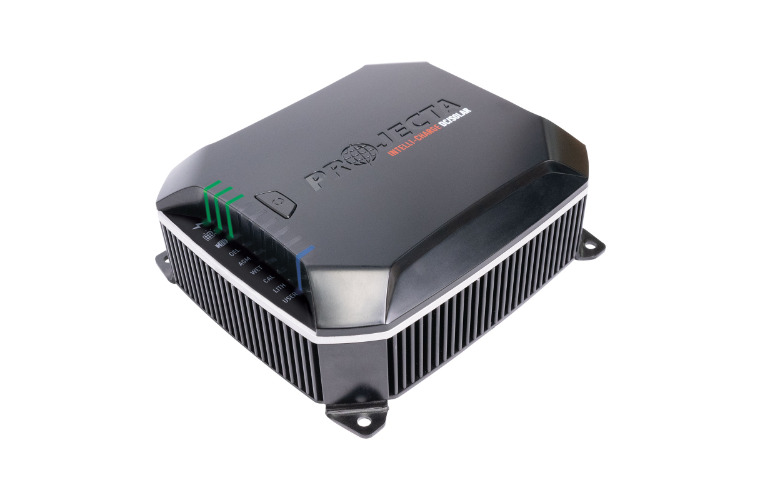

IDC25X DC to DC Charger with MPPT Solar Technology: Reliable Battery Charging for Tough Conditions

The IDC25X DC to DC Charger with MPPT Solar Technology is designed to provide reliable and efficient battery charging, especially in challenging environments. This charger is built to ensure your vehicle's batteries remain in optimal condition, whether you're on the road, off the grid, or simply need a dependable charging solution.

Key Features and Benefits

The IDC25X stands out due to its robust construction and advanced features, making it a practical choice for anyone needing consistent and reliable power. Here’s what you can expect from the IDC25X:

Efficiency in Extreme Conditions
The IDC25X is engineered to maintain its performance even in high temperatures, up to 75°C, and can operate effectively up to 90°C. This makes it particularly suitable for installations in the engine bay where temperatures can rise significantly. The charger is fully potted with thermal epoxy resin, ensuring it meets the IP68 and IP69K standards for protection against dust, water, and high-pressure washing.

Durable and Long-Lasting
Durability is a key aspect of the IDC25X. It's constructed using high-quality electronic components designed to last, and it’s built to withstand vibrations and shocks, meeting heavy vehicle standards. With a 5-year warranty, the IDC25X is a long-term investment that provides peace of mind.

Comprehensive Battery Care
The IDC25X features 3 and 5-stage charging processes, designed to optimise battery health and longevity. The charger automatically adjusts to temperature changes, ensuring the battery receives the correct charge in different climates. Additionally, it compensates for voltage drops, guaranteeing that the correct voltage is delivered to your battery.

The IDC25X also supports MPPT (Maximum Power Point Tracking) solar charging, which optimises the energy harvested from solar panels, even in less-than-ideal conditions. This feature is especially useful for those relying on solar power in remote locations.

Connectivity and Control
The IDC25X can be paired with the Projecta Intelli-IQ app, allowing users to monitor, control, and update the charger via their smartphone. This connectivity simplifies the setup and allows for remote management of the charging process.

Technical Specifications


Here are the technical details that define the IDC25X:

Input Voltage (Alternator): 9-32V
Maximum Solar Input Voltage: 32Vdc
Solar Controller Type: MPPT
Maximum Input Current: 35A
Output Current: 20A (at 9-11Vdc input), 25A (at 11-32Vdc input)
Charging Stages: 3/5 Stages
Protection: Reverse connection, over/under voltage, over temperature
Operating Temperature Range: -10°C to +90°C
IP Rating: IP68 & IP69K
Supported Battery Types: GEL, AGM, WET, Calcium, LiFePO4
Dimensions: 137 x 122 x 50 mm
Weight: 1180g
Warranty: 5 Years

Installation Overview

Installing the IDC25X is straightforward but requires careful attention to detail to ensure safe and optimal operation. Below is a general guide to the installation process:

Mounting: The charger’s design allows for flexible mounting options. It’s recommended to mount the charger away from high-heat sources like exhausts to maintain performance.

Wiring: Use the recommended cable sizes to minimize voltage drops. The charger has designated connection points for alternator input, solar input, auxiliary battery output, and ground.

Connecting Power Sources:

  • Connect the auxiliary battery to the charger’s auxiliary output post, including a fuse near the battery.
  • Connect the starter battery to the alternator input post, also with a fuse near the battery.
  • For solar panels, connect them directly to the solar input post.

Final Checks: After connecting everything, check the LED indicators on the IDC25X to ensure proper operation. The charger should automatically start charging once everything is set up correctly.

Intelli-IQ App Setup: If using the Intelli-IQ app, connect the charger via Bluetooth to monitor and control the charging process remotely.





The IDC25X DC to DC Charger with MPPT Solar Technology is a reliable and efficient solution for those needing dependable battery charging in tough conditions. With its advanced features, durable design, and straightforward installation process, the IDC25X is well-suited for a variety of applications, providing consistent performance wherever you need it.

IDC25X Instruction Manual

Warranty60
Battery TypeCalcium
Battery TypeAGM
Battery TypeEFB
Battery TypeLithium LiFePO4
Battery TypeGel
Model # IDC25X

Be The First To Review This Product!

Help other Archer Batteries Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

What types of batteries does the IDC25X support?

The IDC25X supports GEL, AGM, WET, Calcium, and LiFePO4 battery chemistries.

Can the IDC25X be used in hot environments?

Yes, the IDC25X can operate in temperatures up to 90°C, making it suitable for under-bonnet installations.

Does the IDC25X work with solar panels?

Yes, the IDC25X features MPPT (Maximum Power Point Tracking) solar charging, which maximizes energy harvested from solar panels.

What is the maximum input voltage from the alternator?

The IDC25X can handle an alternator input voltage range of 9-32V.

What is the maximum solar input voltage?

The maximum solar input voltage is 32Vdc.

Does the IDC25X support simultaneous charging from solar and alternator?

Yes, the IDC25X allows for dual input operation, charging from both solar and alternator sources simultaneously.

How does the IDC25X protect against overcharging?

The IDC25X includes automatic temperature compensation and multi-stage charging to prevent overcharging in different environmental conditions.

Can the IDC25X be controlled remotely?

Yes, when paired with the Projecta Intelli-IQ app, the IDC25X can be monitored, controlled, and updated via a smartphone.

What is the IP rating of the IDC25X?

The IDC25X has an IP68 and IP69K rating, providing protection against dust, water, and high-pressure washing.

How many charging stages does the IDC25X have?

The IDC25X offers 3 and 5-stage charging processes, depending on the battery type.

Is the IDC25X suitable for use in vehicles with smart alternators?

Yes, the IDC25X is compatible with vehicles that have smart (variable voltage) alternators.

What size fuse should be used with the IDC25X?

A 50A fuse is recommended for both the input and output connections.

Can the IDC25X be used with lithium batteries?

Yes, the IDC25X supports LiFePO4 lithium batteries and has a lithium wake-up mode.

Does the IDC25X have protection against reverse polarity?

Yes, the IDC25X includes reverse connection protection to prevent damage from incorrect wiring.

What happens if the IDC25X overheats?

If the IDC25X begins to overheat, it will automatically reduce its output current to prevent damage.

Can the IDC25X be mounted in any position?

The IDC25X can be mounted in various positions, but it’s recommended to avoid placing it near extreme heat sources like exhausts.

How do I know if my battery is fully charged with the IDC25X?

The IDC25X uses LED indicators to show the charging status, including when the battery is fully charged.

What should I do if the IDC25X does not power on?

Check the cable sizes and connections, as voltage drops can prevent the IDC25X from starting. Ensure the input voltage is within the correct range.

How do I update the IDC25X firmware?

The IDC25X firmware can be updated via Bluetooth when paired with the Intelli-IQ app.

Is the IDC25X waterproof?

Yes, the IDC25X is designed to withstand water exposure and has a high ingress protection rating.

Can I use the IDC25X with portable solar panels that have a built-in controller?

If using portable solar panels with a built-in controller, the controller will need to be bypassed for proper operation with the IDC25X.

What is the warranty period for the IDC25X?

The IDC25X comes with a 5-year warranty.

What are the dimensions of the IDC25X?

The IDC25X measures 137 x 122 x 50 mm.

How much does the IDC25X weigh?

The IDC25X weighs 1180g.

Can the IDC25X charge a deeply discharged battery?

Yes, the IDC25X can begin charging a battery from as low as 2 volts.

What should I do if the IDC25X indicates the battery is fully charged, but it isn’t?

This may be due to a surface charge. Let the battery sit for a while and then check the charge status again. If the issue persists, the battery may have a faulty cell.

Does the IDC25X include short circuit protection?

Yes, the IDC25X has built-in short circuit protection, making it safer to use.

What does MPPT solar charging mean?

MPPT (Maximum Power Point Tracking) is a technology that optimizes the amount of energy collected from solar panels, even in less-than-ideal conditions.

Can I wire multiple IDC25X units in parallel?

Yes, the IDC25X can be wired in parallel with another unit to provide more charging current for larger systems.

How do I select the correct battery chemistry on the IDC25X?

To select the battery chemistry, press and hold the Mode button until the LED begins flashing, then short press the button to cycle through the options. The selected chemistry will be confirmed after a few seconds.
