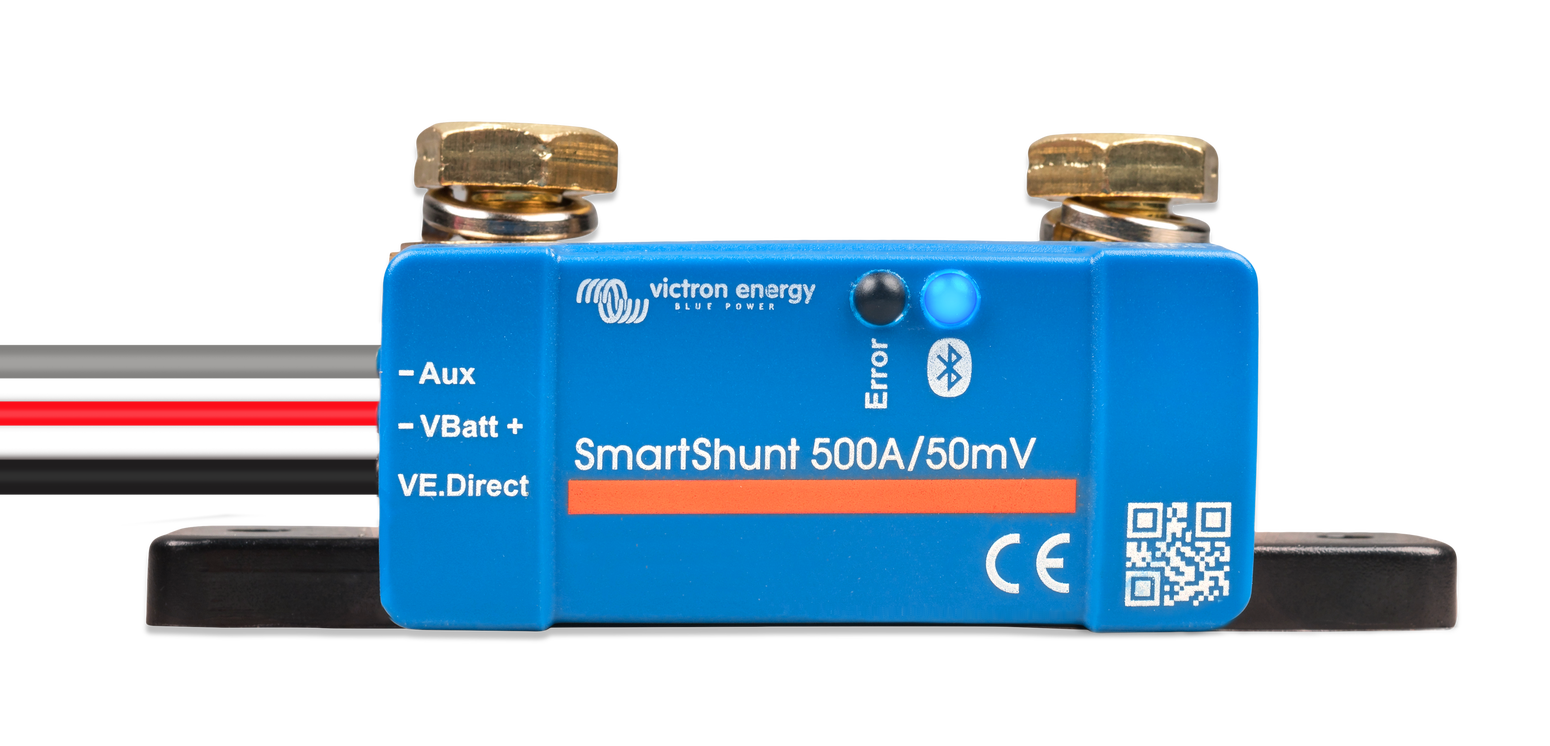

Discover the Victron SmartShunt IP65 500A: The Ultimate Battery Monitoring Solution
Introducing the Victron SmartShunt IP65 500A, a cutting-edge battery monitor designed to provide comprehensive insights into your battery’s performance. Whether you’re managing a marine vessel, RV, solar power system, or any other application requiring reliable battery monitoring, the SmartShunt IP65 500A stands out as a top-tier choice.


Key Features of the SmartShunt IP65 500A

All-in-One Battery Monitor Without a Display:
The SmartShunt IP65 500A is designed to simplify battery monitoring by eliminating the need for a physical display. Instead, it uses your smartphone or tablet as the display via the VictronConnect app, providing a sleek and clutter-free setup.



Rugged and Waterproof Design:
Engineered to withstand harsh conditions, the SmartShunt IP65 500A boasts an IP65 rating. This robust construction ensures reliable performance in various environments, from marine and automotive applications to off-grid and renewable energy systems.


Seamless Connectivity:
Equipped with Bluetooth, the SmartShunt IP65 500A connects effortlessly to the VictronConnect app on your mobile device. This app provides real-time monitoring and configuration capabilities. Additionally, the device includes a VE.Direct port for integration with GX devices, allowing for both local and remote monitoring.


Versatile Auxiliary Monitoring:
The auxiliary connection on the SmartShunt IP65 500A can be used to monitor a second battery, the midpoint of a battery bank, or connect a temperature sensor. This flexibility ensures comprehensive monitoring of your entire battery system.

Precision and Accuracy:
Accuracy is a hallmark of the SmartShunt IP65 500A, ensuring precise measurements that help optimise battery performance and longevity. Its high-resolution metrics include:

  • Current: ±0.01 A
  • Voltage: ±0.01 V
  • Amp Hours: ±0.1 Ah
  • State of Charge: ±0.1%
  • Time to Go: ±1 minute
  • Temperature (with sensor): ±1 °C/°F

Technical Specifications:

  • Supply Voltage Range: 6.5 - 70 VDC
  • Current Draw: < 1 mA
  • Input Voltage Range (Auxiliary Battery): 6.5 - 70 VDC
  • Battery Capacity: 1 - 9999 Ah
  • Operating Temperature Range: -40 to +50 °C (-40 to 120 °F)
  • Accuracy of Current Measurement: ±0.4%
  • Offset: Less than 20/40/80 mA (depending on the model)
  • Dimensions: 46 x 120 x 54 mm
  • Shunt Connection Bolts: M10 (0.3937 inch)
  • Protection Category: IP65

Is the SmartShunt IP65 500A Right for You?

Choosing the right battery monitor involves assessing your specific needs and the SmartShunt IP65 500A’s capabilities. Here are some considerations:

  • Application Environment: If you need a battery monitor for a harsh environment, such as on a boat or in an off-grid solar setup, the IP65 rating ensures durability and reliability.
  • Simplified Installation and Use: The absence of a physical display reduces wiring complexity and installation time. With your smartphone acting as the display, setup and monitoring are straightforward and user-friendly.
  • Comprehensive Monitoring Needs: The auxiliary connection feature allows for monitoring multiple aspects of your battery system, such as a second battery or battery bank midpoint, enhancing your ability to maintain optimal battery health.
  • Remote Monitoring: For those who need to monitor their battery system remotely, the VE.Direct port allows for integration with GX devices, providing access to battery data from anywhere in the world via the Victron VRM portal.

Installation and Usage Steps


  • Unboxing and Preparation: Upon receiving your SmartShunt IP65 500A, ensure that the package includes the main unit, VE.Direct cable, and the necessary wiring components. Select a dry, well-ventilated location close to your battery system for installation.

  • Mounting the SmartShunt: The SmartShunt has two 5.5 mm holes for mounting. Secure the unit to a firm surface using appropriate screws or bolts (not included). Refer to the dimension drawings in the manual for precise mounting hole locations.

  • Making Electrical Connections:

    Step 1:
    Connect the negative battery terminal to the M10 bolt labelled "BATTERY MINUS" on the shunt. Tighten the bolt with a torque of 21 Nm. Ensure no other connections are made on this side to avoid skewing the state of charge calculations.

    Step 2: Connect the negative terminal of the electrical system to the M10 bolt labelled "LOAD MINUS" on the shunt. Tighten this bolt similarly. Ensure that the negative connections of all DC loads, inverters, battery chargers, solar chargers, and other charge sources are made after the shunt.


    Step 3: Attach the M10 eye terminal of the red cable with the fuse to the positive terminal of the battery. This step powers up the SmartShunt.

    Step 4: If using the auxiliary input, connect the respective wires to monitor a second battery, the midpoint of a battery bank, or attach a temperature sensor.

  • Configuration via VictronConnect App: Download the VictronConnect app from the relevant app store and install it on your smartphone or tablet. Use Bluetooth to pair your device with the SmartShunt. Through the app, you can now configure the device, monitor real-time battery data, and set up various parameters such as battery capacity and charge voltage.

  • Optional Connections: For extended functionality, connect the SmartShunt to a GX device using a VE.Direct cable. This setup allows for comprehensive system monitoring and remote access via the VRM portal.

    Final Checks: Ensure all connections are secure and correctly installed. Test the system by checking the data on the VictronConnect app and verifying that the readings align with expected values.



The Victron SmartShunt IP65 500A is a state-of-the-art battery monitoring solution designed for those who demand accuracy, reliability, and simplicity. Its robust construction, high precision, and versatile connectivity make it a valuable addition to any battery system. By providing comprehensive monitoring capabilities and seamless integration with modern technology, the SmartShunt IP65 500A empowers users to maintain optimal battery health and extend the life of their battery systems. Whether for personal or professional use, this device ensures you have complete control and visibility over your battery performance, making it an indispensable tool in your energy management toolkit.

Warranty60
Model # SHU065150050
Barcode # 08719076057895

Be The First To Review This Product!

Help other Archer Batteries Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

What is the Victron SmartShunt IP65 500A?
The Victron SmartShunt IP65 500A is a high-precision battery monitor that tracks essential battery parameters without a physical display, using Bluetooth connectivity to display data on a smartphone or tablet.
What applications is the SmartShunt IP65 500A suitable for?
It is suitable for marine, automotive, RV, off-grid solar power systems, and other applications requiring reliable battery monitoring.
How does the SmartShunt IP65 500A connect to devices for monitoring?
It connects via Bluetooth to the VictronConnect app on smartphones or tablets and can also connect to GX devices via a VE.Direct port for local and remote monitoring.
What is the current draw of the SmartShunt IP65 500A?
The current draw is less than 1 mA.
Can the SmartShunt IP65 500A store historical data?
Yes, it stores trends data for up to 46 days.
What is included in the SmartShunt IP65 500A package?
The package includes the SmartShunt unit, VE.Direct cable, and necessary wiring components.
How do you configure the SmartShunt IP65 500A?
Configuration is done via the VictronConnect app on your smartphone or tablet.
What types of batteries can the SmartShunt IP65 500A monitor?
It can monitor a wide range of battery types, including lead-acid and lithium batteries.
What if the SmartShunt IP65 500A is not powering up?
Check the power connections and ensure the red cable with the fuse is correctly attached to the positive terminal of the battery.
What data is stored by the SmartShunt IP65 500A?
It stores data on battery voltage, current, state of charge, and auxiliary input parameters.
