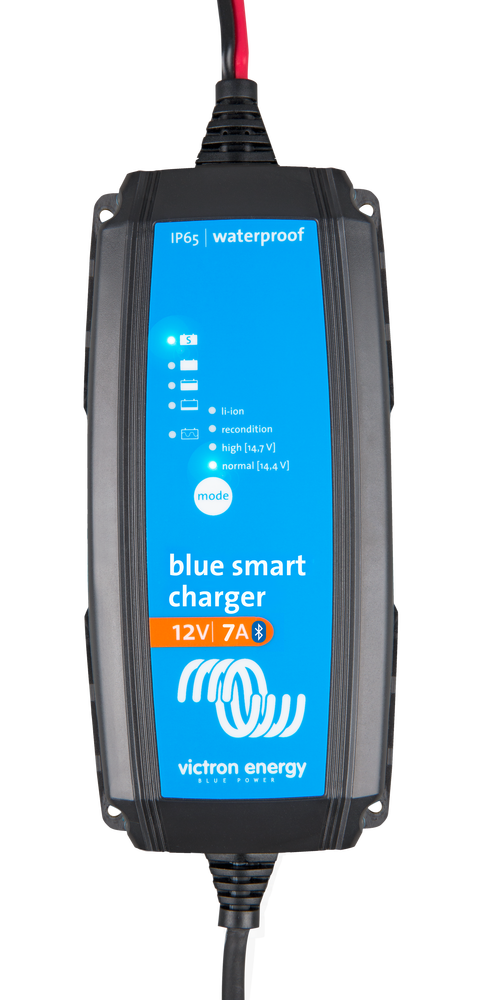

Victron Blue Smart IP65 12/7 Battery Charger: The Smart Choice for Reliable Battery Maintenance

The Victron Blue Smart IP65 12/7 Battery Charger is a compact, efficient, and highly reliable charger designed to meet the needs of various battery maintenance applications. Whether you’re charging a car battery, a marine battery, or a smaller battery for other equipment, this charger offers advanced features and ease of use, ensuring your batteries are always ready when you need them. With its robust design, intelligent charging technology, and user-friendly interface, the Blue Smart IP65 12/7 is an excellent choice for anyone looking to maintain their 12V batteries in peak condition.

Key Features:

High Efficiency: The Victron Blue Smart IP65 12/7 operates with an efficiency of up to 94%, reducing energy loss and heat production. This efficiency not only conserves energy but also extends the lifespan of both the charger and the battery.

Seven-Stage Adaptive Charging: The charger utilises a sophisticated seven-stage charging algorithm to ensure that your battery is charged optimally and maintained in top condition. The stages—Test, Bulk, Absorption, Recondition, Float, Storage, and Refresh—adapt to the condition of your battery, providing the care it needs at each step.

Bluetooth Smart Technology: Integrated Bluetooth allows you to monitor and control the charging process remotely via the VictronConnect app. This feature provides convenience and flexibility, enabling you to manage your battery’s charging status from your smartphone or tablet.

Water-Resistant and Durable: With an IP65 rating, the charger is protected against dust and water ingress, making it suitable for use in various environments, including garages, workshops, and marine settings.

Temperature Compensation: The charger automatically adjusts the charging voltage based on the ambient temperature, ensuring optimal performance in both hot and cold climates. This feature is particularly valuable in maintaining battery health across a wide range of operating conditions.

Reconditioning Mode: Designed to revive deeply discharged batteries, the reconditioning mode applies a higher voltage during the absorption phase. This helps prevent sulfation—a common issue in lead-acid batteries—thereby extending battery life.
Low Current Mode: The low current mode is ideal for charging smaller batteries, reducing the maximum charge current to protect the battery from potential damage.

Silent Operation: The Blue Smart IP65 12/7 operates silently, thanks to its fanless design. This makes it perfect for use in noise-sensitive environments or for overnight charging.

Technical Specifications:
Input Voltage Range: 180-265V AC, 45-65Hz
Output Voltage: 12V
Charge Current: 7A (Normal mode), 2A (Low current mode)
Efficiency: Up to 94%
Protection Category: IP65 (dust-tight and protected against water ingress)
Operating Temperature: -40°C to +60°C (full rated output up to 30°C)
Dimensions: 47 x 95 x 190mm
Weight: 0.9 kg
Battery Types Supported: Lead-acid (AGM, GEL, Calcium), LiFePO4
Charge Algorithm: Seven-stage adaptive with optional recondition mode
Bluetooth Connectivity: Yes, via VictronConnect app
Certifications: EN 60335-1, EN 60335-2-29, EN 55014-1, EN 61000-6-3, EN 61000-3-2

Installation and Setup:

The installation and setup of the Victron Blue Smart IP65 12/7 Battery Charger are straightforward, making it easy for both professionals and DIY enthusiasts to get started.

Unpack the Charger: Begin by unpacking the charger and ensuring that all components are present, including the charger unit, DC cables, and AC power cord.

Connect the DC Cables:  Start by connecting the red and black DC cables to the charger, then the battery terminals. Ensure the connections are secure and that the terminals are clean to avoid any potential issues.

Connect to AC Power: Plug the AC power cord into a mains outlet. The charger will automatically power on, and the LEDs will indicate the current status of the charging process.

Select the Charging Mode: Use the MODE button on the charger to cycle through the available charging modes (Normal, High, or Li-ion) until the desired mode is selected. The corresponding LED will illuminate to confirm the selected mode.

Monitor Charging via Bluetooth: For detailed monitoring, download the VictronConnect app on your smartphone or tablet. Pair your device with the charger via Bluetooth to view the charging status, make adjustments, or update the firmware.

Charging Cycle: The charger will automatically proceed through the charging stages, adapting to the battery's condition. The LEDs on the charger and the VictronConnect app provide real-time feedback on the progress.

Completion and Float Mode: Once the battery is fully charged, the charger will enter Float mode, maintaining the battery at 100% charge. You can safely disconnect the charger at this stage, though it can also be left connected to maintain the battery if it is not in use.

Maintenance Charging: If the battery will be idle for an extended period, the charger’s Storage mode will help maintain the battery's health by preventing sulfation, ensuring it remains in good condition for future use.

The Victron Blue Smart IP65 12/7 Battery Charger is a dependable and versatile charging solution that combines advanced technology with a compact and durable design. Whether you're maintaining the battery of a vehicle, boat, or smaller equipment, this charger offers the features and performance needed to keep your batteries in optimal condition. With its high efficiency, intelligent charging algorithm, and user-friendly interface, the Blue Smart IP65 12/7 is an excellent choice for those who require a reliable and efficient charger. Make the smart choice with the Victron Blue Smart IP65 12/7 Battery Charger and enjoy the peace of mind that comes with knowing your batteries are in good hands.

Victron Blue Smart IP65 12V 7A Instruction Manual
