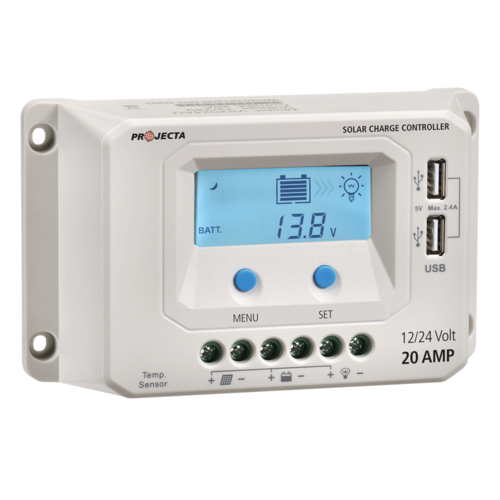

Ideally suited to solar panels producing up to 20 Amps, the SC220 is a sophisticated solar controller that delivers a comprehensive 4 stage charging process and the ability to tailor its settings to best suit your battery type.

Features at a glance:

- Built in temperature sensor
- Easy power in/power out connection
- User friendly menu/set buttons
- Efficient heatsink rear panel
- Digital LCD screen
- Dual USB ports (max 2.4A)
- Multi-chemistry battery selection
- Low voltage disconnect

Type

Automatic

Input

12V or 24V

Max Input

50V DC, 20A

Battery

12V or 24V

Max Panel Size

240W (12V)

Size

160mm x 95mm x 50mm

IP Rating

IP22

Approvals

EMC





Charge Control

4 Stage Charging





12V

24V

Bulk / Absorption:

Gel

14.2V

28.4V

AGM

14.4V

28.8V

WET

14.6V

29.2V

Equalisation:

Gel

-

-

AGM

14.6V

29.2V

WET

14.8V

29.6V

Float:



13.8V

27.6V

Barcode # 09315219711526
