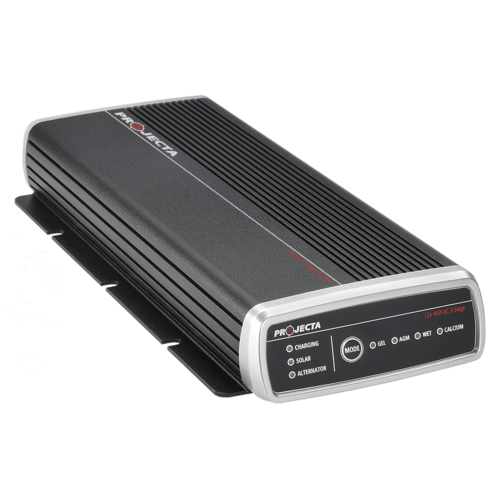

Operating Conditions:

Input Voltage:

9-32V DC

Maximum Solar Input Voltage:

28V DC

Maximum Input Current:

65A

Input Current (No Load):

20mA

Back Drain on Auxiliary Battery:

< 5mA

External LED Output – Constant Current:

4mA

Output Current:

Input 9-11V DC: 37A
Input 11-32V DC: 45A

Input Fuse Rating:

80A (not supplied)

Output Fuse Rating:

80A (not supplied)

Maximum Output Power:

693W

Solar Input Turn On Voltage:

9V

Size:

255 x 122 x 40 mm

Solar MPPT Voltage:

17.5V

Weight:

1.54kg

Operating Temperature: (Derated from 55°C)

-10°C to +80°C

Charge Control:

Charge Type:

3 Stage

Bulk* 37A at 9-11V DC & 45A at 11-32V DC

*Constant Current up to:

Gel
14.1V

AGM
14.4V

Wet
14.7V

Calcium
15.4V

Absorption

Constant Voltage until drop to 7.5A

Calcium
15.4V

Calcium
15.4V

Calcium
15.4V

Calcium
15.4V

Float

Keep Constant Voltage at 13.7V

Equalisation (Calcium mode only):

7.5A Constant Current Charge up to 16V then hold for 1 hour (5 hour timeout)

Battery Range:

Battery Capacity:

150-600Ah

Type of Batteries Supported:

Gel, AGM, Wet & Calcium

Operating Mode:

12V Vehicle

24 V Vehicle

VSR Mode - Default: (Ignition Override not connected)

Turn on:
13.4-20V

Turn off:
<12.8V

Turn on:
26.8-32V

Turn off:
<25.6V

Low Voltage Mode – Ignition Override cable connected to ignition switch: (Ignition on)

Turn on:
12.2-20V

Turn off:
<11.9V

Turn on:
24.4-32V

Turn off:
<24V

Standards:

EMC:

C-Tick, AS/NZS CISPR11:2011 Class B

IP Rating:

IP67
