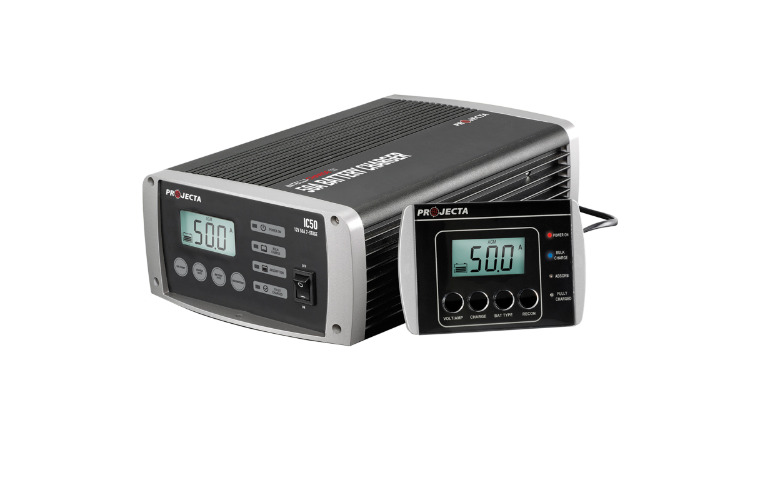

An extremely versatile charger that is capable of being set to charge smaller batteries found in recreational equipment right up to the huge power demands of large battery banks often found on houseboats and yachts. Comes with a 5 year warranty.

Type

7 Stage Automatic

Input

240VAC, 50Hz, 800W

Output

12V

Output Current

2, 6, 12, 25, 50A

Minimum Start Voltage

1.0V

Back Drain

Charger 1mA, with remote 2mA

Approvals

Electrical Safety, EMC

Charge Voltage

14.1V (GEL), 14.4V (AGM), 14.7 V (WET), 16.0V (Calcium), 14.2V (Lithium)

L.E.D. Charge Indication



Screen

Back lit LCD screen

Red Light On

Power on

Blue Light On

Charging

Green Light On

Fully charged and maintaining, no need to turn the charger off





Battery Charge Times





Voltage

Battery Size

Charge Time

Automotive

12V

80-6000CCA

7-24 hrs

Marine

12V

110-8300MCA

7-24 hrs

Deep Cycle

12V

14-1000AH

7-24 hrs

Lithium

12V

4-500Ah

2-10 hrs

Voltage12
Warranty60
Battery TypeCalcium
Battery TypeAGM
Battery TypeEFB
Battery TypeLithium LiFePO4
Battery TypeGel
Model # IC50
Barcode # 09315219001993
