12.8V 200Ah 2560Wh LiFePO4 battery with Bluetooth and scalability up to 40.96kWh systems

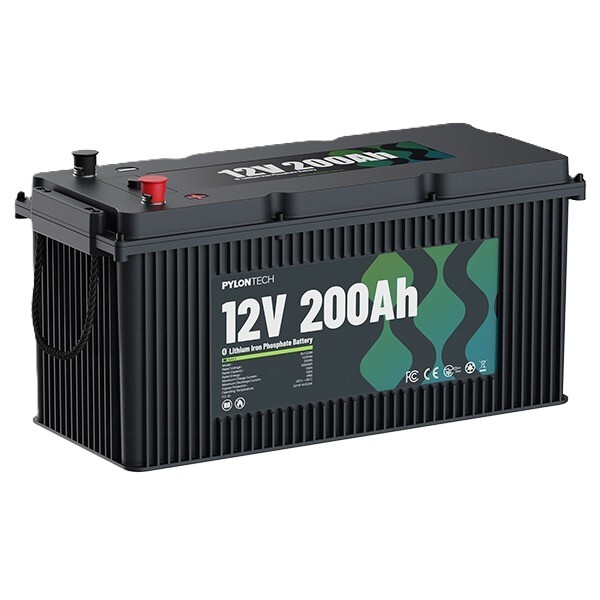

The high capacity RV12200 is the latest addition to Pylontech's all-purpose lithium range. It has been designed for energy storage applications and is an ideal alternative to deep cycle lead acid batteries.

Suitable for use in 4x4 and recreational vehicles, Marine applications, trucks, cabins and other off-grid applications, this Pylontech battery is approximately 50% lighter, with 30% higher energy density than comparable capacity lead-acid batteries.

The advanced "array aware" BMS, features multiple safety functions, is capable of over 4000 cycles and can be scaled into systems of up to to 16 modules in 1S16P, 2S8P or 4S4P configurations. The embedded BMS's auto-balancing function ensures all batteries in the system are balanced to ultimately increase service life and maximise your ROI.

The RV12200 features Bluetooth to enable real-time monitoring & system configuration via the Pylontech Auto App. And when coupled with the KIT-C1* communications hub, allows even more control over your system performance. *Available separately.

The IP65 ruggedised casing and front terminal construction allows for easier installations. The innovative heating film aids in the charging of the batteries if exposed to sun-zero environments. This feature basically uses a battery charger to engage the heater, which increases the internal temperature of the battery to reach 0 degrees celcius, to then start charging the battery.

*PLEASE NOTE - Long Term Storage - Sleep Mode
To maximise storage life, the RV12200 is shipped in Sleep Mode with the Bluetooth function deactivated. To activate the RV12200, simply connect a battery charger with a current greater than 1 Amp. The battery can be put back into sleep mode for long term storage using the KIT-C1 accessory.

Important Information: SERIES AND PARALLEL CONNECTION CAPABLE

This Pylontech Lithium Iron Phosphate battery can be connected up to 16 modules per system in configuration of UP TO 1S16P, 2S8P or 4S4P.

*See Product User Manual or Datasheet for more information.
