This engine bay specific kit is designed to suit the installation of a 25amp BCDC DC to DC charger where the batteries are located in different sides of the engine bay.

Suitable for BCDC1220, BCDC1220-IGN, and BCDC1225D, the BCDCWK-002 BCDC Wiring Kit has been designed to facilitate easy installation of a REDARC BCDC DC to DC Battery charger when the start battery and auxiliary battery are at opposite ends of the engine bay (more than 2’, but less than 11’) .

This kit contains all the cables, fuses, fuse holders and connectors required to install the BCDC between the batteries. The cables are even pre-crimped on one end, and through use of the supplied terminal block, the other end of the cables can be trimmed to length to suit the specific installation. The Auxiliary Battery ground cable and solar to Anderson cable are sold separately.

FEATURES

  • Suits engine bay installations
  • Perfect for batteries on opposite ends of the engine bay
  • Complete wiring solution
  • Cables supplied pre-crimped at one end
  • All required cables, fuses, fuse holders and connectors included
Warranty24
Model # BCDCWK-002
Barcode # 09338628007479

Be The First To Review This Product!

Help other Archer Batteries Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

What distinguishes the BCDCWK-002 Wiring Kit from other models in the range?
The BCDCWK-002 is specifically designed for installations where the auxiliary and start batteries are more than 0.6m (2') and less than 3.5m (11') apart, often at opposite ends of the engine bay. It includes longer cables and is suited for a wide array of vehicle setups.
Is the BCDCWK-002 suitable for all types of vehicles?
While the BCDCWK-002 kit offers flexibility for various installations, it's particularly tailored for vehicles with longer distances between batteries. It's ideal for most passenger vehicles, 4WDs, and light commercial vehicles that meet the specified distance requirements.
Can I use the BCDCWK-002 with lithium batteries?
Yes, the BCDCWK-002 is compatible with lithium (LiFePO4), as well as lead-acid, gel, AGM, and calcium batteries, making it versatile for different charging needs.
What components are included in the BCDCWK-002 Wiring Kit?

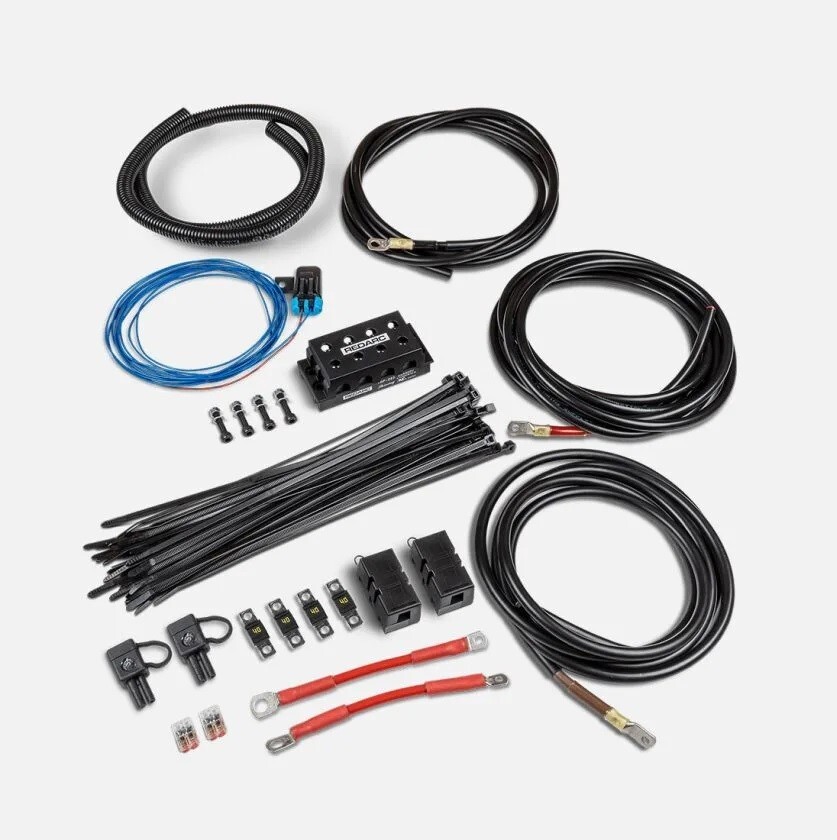

The kit includes brown, black, and red cables of specified lengths for extended installations, a terminal block with a plastic cover, MIDI fuses and holders, cable ties, a Wago® Connector and boot, and a protective conduit.
How long are the cables provided in the BCDCWK-002 kit?
For the BCDCWK-002, the brown and black cables are 2.5m (8'2") in length, and the red cable is 3.5m (11'5"), accommodating installations with batteries that are apart within the specified range.
Can I install the BCDCWK-002 myself?
While the kit is designed for DIY installation with detailed instructions, it's crucial to have a good understanding of your vehicle's electrical system. If unsure, seek professional installation to ensure safety and functionality.
