BCDC wiring kit to suit side by side engine bay installations up to 25A.

Suitable for BCDC1220, BCDC1220-IGN, and BCDC1225D, the BCDCWK-001 BCDC Wiring Kit has been designed to facilitate easy installation of a REDARC BCDC DC to DC Battery charger when the start battery and auxiliary battery are in close proximity within the engine bay (less than 2’ apart).

This kit contains all the cables, fuses, fuse holders and connectors required to install the BCDC between the batteries. The cables are even pre-crimped on one end, and through use of the supplied terminal block, the other end of the cables can be trimmed to length to suit the specific installation. The Auxiliary Battery ground cable and solar to Anderson cable are sold separately.

FEATURES

  • Suits engine bay installations
  • Perfect for batteries in close proximity
  • Complete wiring solution
  • Cables supplied pre-crimped at one end.
  • All required cables, fuses, fuse holders and connectors included
Warranty24
Model # BCDCWK-001
Barcode # 09338628007462

Be The First To Review This Product!

Help other Archer Batteries Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

What is the BCDCWK-001 Wiring Kit used for?
The BCDCWK-001 Wiring Kit is designed to connect a REDARC BCDC Battery Charger to both the auxiliary and start batteries in your vehicle, facilitating efficient charging and power management in engine bay installations where the batteries are in close proximity (less than 0.6 m/2 ft apart).
What models of BCDC Battery Chargers is the BCDCWK-001 compatible with?
The BCDCWK-001 is suitable for use with BCDC1220, BCDC1220-IGN, and BCDC1225D models, specifically for engine bay installations where the auxiliary and start batteries are closely located.
What components are included in the BCDCWK-001 Kit?

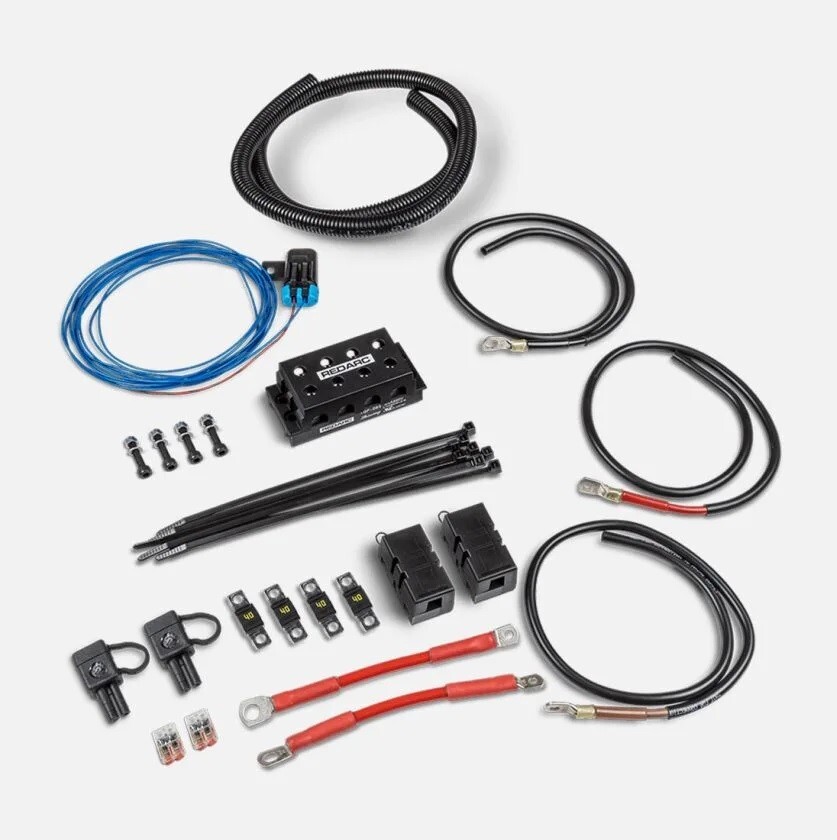

The kit includes brown, black, and red cables, a terminal block with a plastic cover, M5 screws, nylon locking nuts, flat washers, short red cables, a fuse kit with MIDI fuses and holders, cable ties, Wago® connectors and boots, blue cables with a mini blade fuse, and protective conduit.
How long are the cables provided with the BCDCWK-001 kit?
All cables (brown, black, and red) in the BCDCWK-001 kit are 600 mm (23.6 inches) long, with a gauge of 7.7 mm² (8 AWG).
What type of fuse is provided with the BCDCWK-001, and what is its rating?
The kit includes MIDI fuses with a 40 A rating, suitable for the circuit protection required in the wiring setup.
Is the BCDCWK-001 kit suitable for lithium battery installations?
While the BCDCWK-001 can be used in installations involving lithium batteries, specific connection instructions for lithium profiles should be followed as detailed in the BCDC charger's manual.
Can the BCDCWK-001 kit be used for vehicles with start-stop systems?
Yes
