This engine bay specific kit is designed to suit the installation of a 25amp BCDC DC to DC charger where the batteries are located at opposite ends of the vehicle.

Suitable for BCDC1220, BCDC1220-IGN, and BCDC1225D, the BCDCWK-002 BCDC Wiring Kit has been designed to facilitate easy installation of a REDARC BCDC DC to DC Battery charger when the start battery and auxiliary battery are at opposite ends of the vehicle (more than 8.5m / 28’).

This kit contains all the cables, fuses, fuse holders and connectors required to install the BCDC between the batteries. The cables are even pre-crimped on one end, and through use of the supplied terminal block, the other end of the cables can be trimmed to length to suit the specific installation. The Auxiliary Battery ground cable and solar to Anderson cable are sold separately.

FEATURES

  • Suits engine bay installations
  • Perfect for batteries on opposite ends of the engine bay
  • Complete wiring solution
  • Cables supplied pre-crimped at one end
  • All required cables, fuses, fuse holders and connectors included
Warranty24
Model # BCDCWK-003
Barcode # 09338628007486

Be The First To Review This Product!

Help other Archer Batteries Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

What is the BCDCWK-003 Wiring Kit designed for?
The BCDCWK-003 Wiring Kit is specifically designed for vehicle rear installations of up to 25A where the auxiliary battery is located up to 8.5 meters away from the start battery. It's ideal for vehicles like pickup trucks or wagons with auxiliary batteries mounted at the rear.
What components are included in the BCDCWK-003 Wiring Kit?

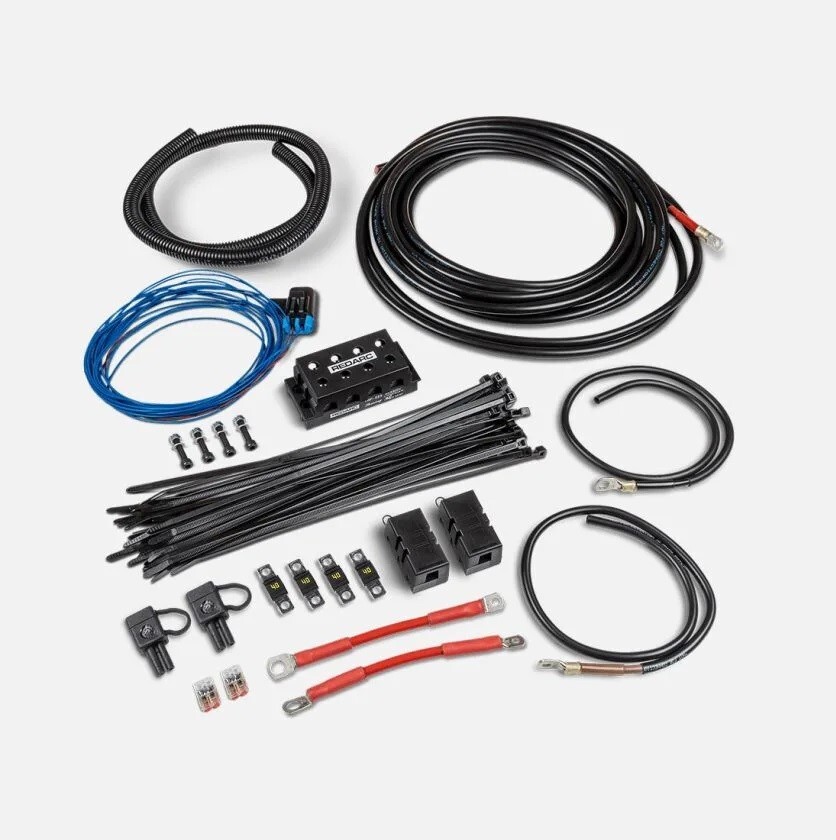

The kit includes long-length, high-gauge brown, black, and red cables for the connection, a terminal block with a protective cover, MIDI fuses and holders, cable ties for secure installation, and a Wago® Connector with a boot for the blue wire connection, among other components.
How do I choose between the BCDCWK-003 and other kits in the BCDC range?
Select the BCDCWK-003 if your auxiliary battery installation requires long cable runs, typically when the battery is located at the rear of the vehicle, up to 8.5 meters away from the start battery, and a max charge of 25A. The specific lengths and gauge of the cables are chosen to minimise voltage drop over such distances.
Can I install the BCDCWK-003 Wiring Kit myself?
While DIY installation is possible, it requires a good understanding of your vehicle’s electrical system and adherence to safety guidelines. If you're not confident, seeking professional assistance is recommended to ensure a safe and effective installation.
Is the BCDCWK-003 suitable for lithium batteries?
Yes, the BCDCWK-003 is compatible with lithium (LiFePO4) batteries, in addition to lead-acid, gel, AGM, and calcium batteries. It's a versatile solution for various battery technologies.
