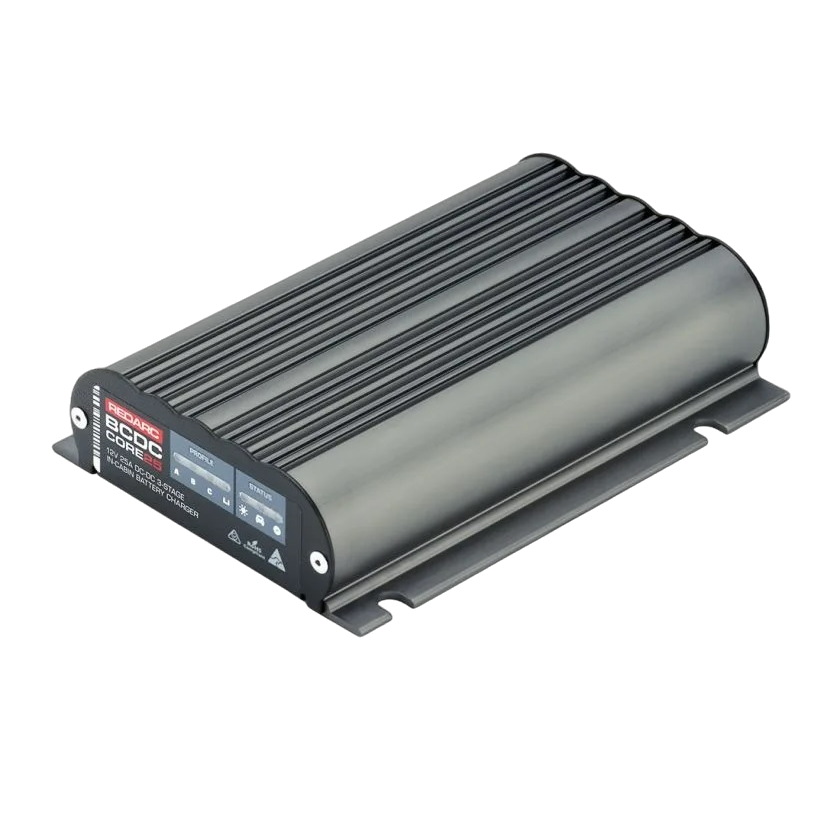

Redarc BCDCN1225 Dual Input 25A Battery Charger - Efficient and Reliable
SKU code: REDARCBCDCN1225
In-Cabin 12V 25A DC to DC battery charger with Solar. Lithium Compatible.
REDARC's BCDC Core 25A DC to DC In-Cabin Battery Charger is the next evolution of the legendary BCDC platform that has been powering off-grid adventures for over 10 years.
The BCDC Core is the perfect DC to DC charging solution for in-cabin, canopy, or battery box setups where dust and weatherproofing isn’t required. Each BCDC Core features REDARC’s tried and tested dual input DC charging tech plus an MPPT solar regulator and Green Power Priority all in the familiar and compact BCDC form factor. These features allow the BCDC Core to efficiently charge from both the alternator and solar simultaneously, ensuring maximum charge capacity no matter the situation.
Looking for a DC-DC Charger for an under bonnet installation? The REDARC BCDC Classic range in 25amp, 40amp and 50amp models could be what you're looking for.
Max Charge Efficiency
The BCDC Core features a Maximum Power Point Tracking (MPPT) solar regulator and 'Green Power Priority'. With these features the BCDC Core will charge from both solar and the alternator simultaneously, maximising its charge rate and minimising the load on your alternator, saving fuel.
Compact & Silent
With no loud fans or relays and a small form factor, the BCDC Core can be tucked away, leaving room in the cabin for more important things. Don't ruin the look of your interior with bulky electronics. Hide it under the rear floor, behind a side panel or under the seats and make your power set up look like it was meant to be there.
Lithium Ready
With chemistry specific charging profiles, including lithium the BCDC Core ensures your batteries are ready for your next adventure. The award-winning technology in the BCDC Core has been independently verified and tested to ensure battery life is maximised, charging your battery to a proven 100%.*
For most applications, the BCDC Core 25A is suitable for battery bank sizes of 60-200AH for AGM and lead acid and up to 100AH for lithium. Check the manufacturer’s data for your battery and ensure that the ‘Continuous Current Rating’ of the charger does not exceed the manufacturer’s recommended maximum charging current. For higher capacity needs of over 200AH, REDARC recommends the BCDC Core 40A.
*Large capacity battery banks may require a few cycles to fully charge.
Backed by the Best
The BCDC Core is designed, tested and manufactured in Australia and is backed by our leading technical support and national REDNetwork certified installer network.
If you’re heading out into the bush and want to get there and back again safely – you can trust REDARC.
Features
- Suitable for in-cabin and canopy installations only
- Compact form factor
- Simultaneous DC and solar charging with Green Power Priority
- Maximises the performance and life of your auxiliary battery
- Suits 12V/24V standard and variable voltage/smart alternators
- Suitable for AGM, GEL, standard lead acid, calcium and Lithium (LiFePO4) batteries
- Suitable for use on vehicles with conventional alternator charging systems
|
Input Charge |
Simultaneous vehicle and solar |
|
Installation Type |
In-cabin only |
|
Input (Operating) Voltage |
9 – 32VDC |
|
Output System Voltage |
12VDC |
|
Maximum Charging Voltage |
15.3V |
|
Output Current Rating (Cont.) |
25A |
|
Input Fuse Rating |
40A |
|
Output Fuse Rating |
40A |
|
Type Approval |
E-Mark |
|
Warranty |
2 Years |
|
Standby Current Draw |
<8mA |
|
Output Power |
375W |
|
Length (mm) |
165 |
|
Width (mm) |
120 |
|
Height (mm) |
37 |
|
Weight (kg) |
1 |
BCDC Core Instruction Manual EN
BCDC Core Install Manual EN FR DE IT ES PL AR
| Voltage | 12 |
| Warranty | 24 |
| Model # | BCDCN1225 |
| Barcode # | 09338628007035 |
