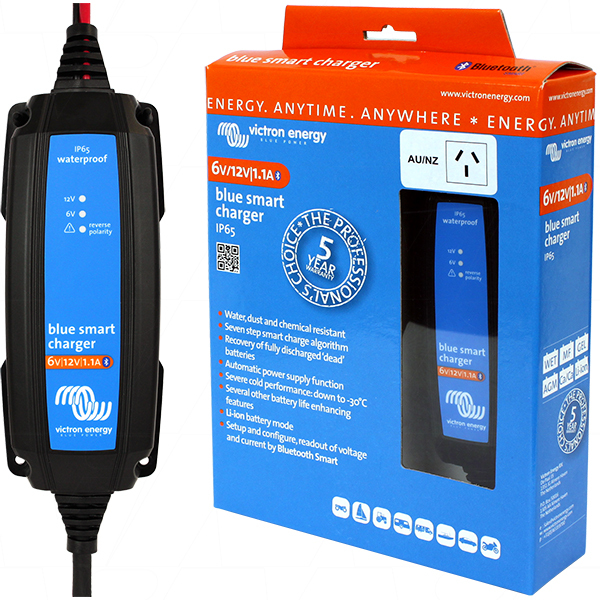

Victron Blue Smart IP65 6/12 1.1 Battery Charger: The Ideal Solution for Maintaining Small 6V &12V Batteries

The Victron Blue Smart IP65 6/12 1.1 Battery Charger is a versatile and compact charger designed to efficiently maintain small 6V and 12V batteries. Whether you need to charge batteries for motorcycles, scooters, small vehicles, or other equipment, this charger offers advanced features that ensure reliable and safe battery maintenance. Its durable, water-resistant design and intelligent charging technology make it the perfect choice for anyone looking to keep their batteries in top condition.

Key Features:

Versatile Charging: The Victron Blue Smart IP65 6/12 1.1 is capable of charging both 6V and 12V batteries, making it a versatile tool for various applications. This flexibility allows you to use the charger for a range of battery types, including lead-acid (AGM, GEL, Calcium) and LiFePO4 batteries.

Seven-Stage Adaptive Charging: The charger features a sophisticated seven-stage charging algorithm that optimises the charging process based on the battery’s condition. The stages—Test, Bulk, Absorption, Recondition, Float, Storage, and Refresh—ensure that your battery is charged safely and maintained in the best possible condition.

Bluetooth Smart Technology: With built-in Bluetooth connectivity, you can monitor and control the charging process remotely via the VictronConnect app. This feature provides convenience and flexibility, allowing you to keep an eye on your battery’s status from your smartphone or tablet.

Water-Resistant and Durable: The IP65 rating indicates that the charger is protected against dust and water ingress, making it suitable for use in a variety of environments, including garages, workshops, and outdoor settings. Its robust construction ensures reliable performance even in challenging conditions.

Temperature Compensation: The charger automatically adjusts the charging voltage based on the ambient temperature, ensuring optimal performance in both hot and cold climates. This feature is essential for maintaining battery health and longevity across a wide range of conditions.

Reconditioning Mode: Designed to revive deeply discharged batteries, the reconditioning mode applies a higher voltage during the absorption phase. This helps prevent sulfation—a common issue in lead-acid batteries—thereby extending battery life.

Low Current Mode: The low current mode reduces the maximum charge current, making it ideal for charging smaller batteries without the risk of damage. This mode is particularly useful for delicate batteries that require careful charging.

Silent Operation: The Victron Blue Smart IP65 6/12 1.1 operates silently due to its fanless design, making it suitable for use in noise-sensitive environments or during overnight charging.

Technical Specifications:

Input Voltage Range: 100 - 250VAC | 45 - 65Hz
Output Voltage: 6V or 12V (selectable)
Charge Current: 1.1A (Normal mode)
Efficiency: Up to 82%
Protection Category: IP65 (dust-tight and protected against water ingress)
Operating Temperature: -30°C to +50°C (full rated output up to 30°C)
Dimensions:  38 x 64 x 153 mm
Weight: 0.4 kg
Battery Types Supported: Lead-acid (AGM, GEL, Calcium), LiFePO4
Charge Algorithm: Seven-stage adaptive with optional recondition mode
Bluetooth Connectivity: Yes, via VictronConnect app
Certifications: EN 60335-1, EN 60335-2-29, EN 55014-1, EN 61000-6-3, EN 61000-3-2

Installation and Setup

The Victron Blue Smart IP65 6/12 1.1 Battery Charger is designed for ease of use, with straightforward installation and setup that even those new to battery maintenance can handle with confidence.

Unpack the Charger: Begin by unpacking the charger and ensuring all components are present, including the charger unit, DC cables, and AC power cord.

Connect the DC Cables:  Start by connecting the red and black DC cables to the charger, then the battery terminals. Ensure the connections are secure and that the terminals are clean to avoid any potential issues.

Select the Output Voltage: Use the MODE button on the charger to select either 6V or 12V output, depending on the battery you are charging. The corresponding LED will illuminate to confirm the selected output.

Connect to AC Power: Plug the AC power cord into a mains outlet. The charger will automatically power on, and the LEDs will indicate the current status of the charging process.

Monitor Charging via Bluetooth: For detailed monitoring, download the VictronConnect app on your smartphone or tablet. Pair your device with the charger via Bluetooth to view the charging status, make adjustments, or update the firmware.

Charging Cycle: The charger will automatically proceed through the charging stages, adapting to the battery's condition. The LEDs on the charger and the VictronConnect app provide real-time feedback on the progress.

Completion and Float Mode: Once the battery is fully charged, the charger will enter Float mode, maintaining the battery at 100% charge. You can safely disconnect the charger at this stage, though it can also be left connected to maintain the battery if it is not in use.

Maintenance Charging: If the battery will be idle for an extended period, the charger’s Storage mode will help maintain the battery's health by preventing sulfation, ensuring it remains in good condition for future use.

The Victron Blue Smart IP65 6/12 1.1 Battery Charger is an excellent choice for anyone needing to maintain small 6V and 12V batteries in optimal condition. Whether you're charging a motorcycle battery, a scooter battery, or batteries for other small vehicles or equipment, this charger provides the advanced features and reliable performance necessary to keep your batteries in peak health. With its compact design, intelligent charging algorithm, and user-friendly interface, the Blue Smart IP65 6/12 1.1 is a dependable and efficient solution for your battery maintenance needs. Choose the Victron Blue Smart IP65 6/12 1.1 Battery Charger and enjoy the confidence that comes with knowing your batteries are always ready to go.
