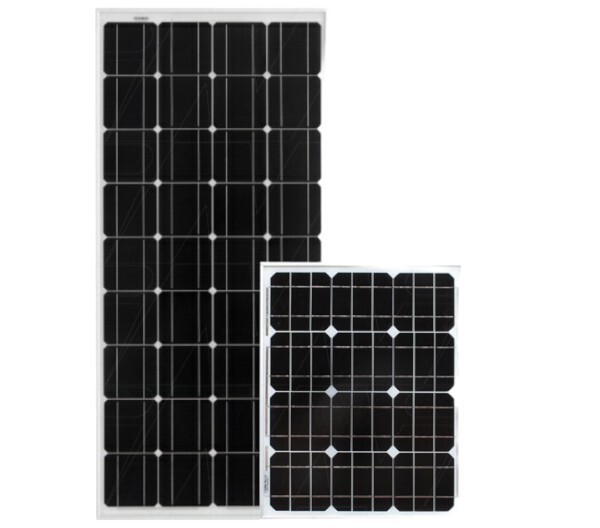

Victron SPM041401200 Monocrystalline Solar Panel: Precision Engineered for Peak Performance

The Victron SPM041401200 Monocrystalline Solar Panel represents the apex of solar technology, designed for those who demand the best in power, performance, and durability. With its 140W-12V power, this robust panel is an exemplary choice for a wide array of applications, ensuring you harness the maximum potential of solar energy.

Key Features:

  • Monocrystalline Efficiency: The SPM041401200 is built with high-grade monocrystalline cells, known for their superior light absorption and high efficiency. This means more power per square meter and a smaller overall footprint.

  • Sturdy and Durable Design: Encased in a heavy-duty anodized aluminum frame, the panel is equipped to withstand challenging environmental conditions without compromising on performance. The high-transmission tempered glass ensures durability and maintains optimal power generation.

  • Enhanced Performance in Low-Light Conditions: Designed to perform even in low-light conditions, the SPM041401200 continues to generate energy from dawn till dusk, making it a reliable energy source throughout the day.

  • Easy Installation and Integration: With pre-drilled holes on the rear of the panel and a variety of compatible mounting systems, installation is straightforward. Whether it's a residential rooftop, camping, or a commercial setting, the panel integrates seamlessly into your existing system.

  • Safety and Reliability: Equipped with waterproof junction boxes and bypass diodes, the panel minimizes power drop due to shading and ensures safe operation through varying weather conditions.

Technical Specifications:

  • Nominal Power: 140W
  • Voltage at Max Power (Vmpp): 19.4V
  • Current at Max Power (Impp): 7.22A
  • Open Circuit Voltage (Voc): 23.6V
  • Short Circuit Current (Isc): 8.05A
  • Dimensions: 1250 x 668 x 30mm
  • Weight: 9 kg
  • Operating Temperature Range: -40°C to +85°C

Ideal for:

  • Residential solar installations
  • Commercial solar projects
  • Off-grid applications including camping, caravans, 4WDs, boats, and remote sensors
  • Hybrid systems with other renewable energy sources or generators

Data Sheet BlueSolar Monocrystalline Panels

Installation Manual

Cell TypeMonocrystalline
Panel TypeRigid
Nominal Power (PMPP)140W
Max Power Voltage (VMPP)19.4V
Max Power Current (IMPP)7.22A
Open Circuit Voltage (VOC)23.6V
Short-Circuit Current (ISC)8.05A
Max System Voltage1000V
Number of cells in series36
Length MM1250
Width MM668
Height MM30
Warranty60
Weight KG9
Model # SPM041401200

Be The First To Review This Product!

Help other Archer Batteries Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Can the SPM041401200 be used in off-grid applications?
Yes, it's ideal for off-grid installations including residential, 4WDs, camping, caravans, remote sensors, and hybrid systems.
What type of cells does the SPM041401200 panel use?
It uses high-efficiency monocrystalline cells known for superior light absorption and efficiency.
What is the warranty for the Victron SPM041401200?
Victron offers a 5-year limited warranty on materials and workmanship and a 25-year limited warranty on power output and performance.
Is the panel easy to install?
Yes, it comes with pre-drilled holes at the back and is compatible with various mounting systems for easy installation.
How is the panel protected against environmental conditions?
It has a sturdy anodized aluminum frame and high-transmission tempered glass for durability. It also features waterproof junction boxes and bypass diodes for safety and performance consistency.
