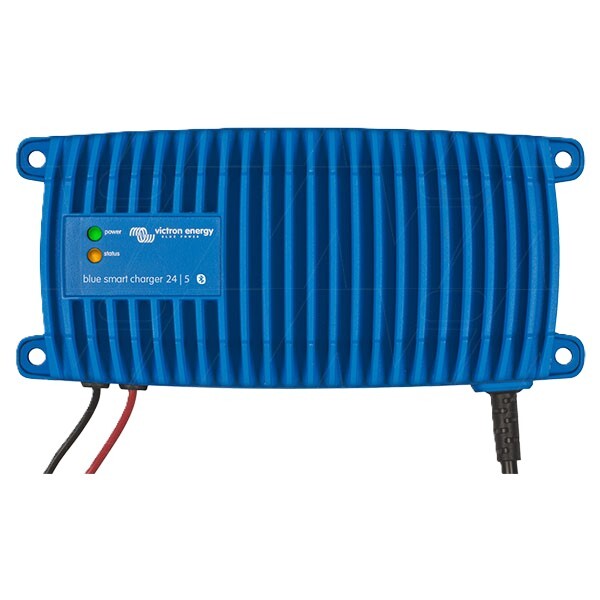

Victron Blue Smart IP67 24V 5A Charger: Reliable, Efficient, and Waterproof Battery Charging

The Victron Blue Smart IP67 24V 5A Charger is the ideal solution for anyone who needs a dependable, efficient, and durable battery charger. Designed to meet the rigorous demands of marine, automotive, and industrial applications, this charger combines advanced technology with robust construction to deliver exceptional performance in the toughest environments. With its high efficiency, intelligent charging algorithms, and user-friendly interface, the Blue Smart IP67 24V 5A Charger ensures your batteries are always in peak condition. Whether you're a professional or a DIY enthusiast, this charger provides the reliability and efficiency you need to keep your batteries charged and ready to go. This charger can operate at two amp rates: a standard 5A and a low 2A mode.

Waterproof and Robust Design

The Blue Smart IP67 24V 5A Charger is fully encapsulated, making it waterproof, shockproof, and resistant to dust and other contaminants. The charger's durable construction includes a cast aluminum casing and resin-encapsulated electronics, ensuring it can withstand harsh conditions commonly found in marine, automotive, and industrial environments.

High Efficiency

With an efficiency rating of up to 95%, the Blue Smart IP67 Charger minimises energy waste and reduces heat generation. This high efficiency not only extends the charger's lifespan but also makes it more environmentally friendly. Additionally, when the battery is fully charged, the charger's power consumption drops to less than one watt, making it one of the most energy-efficient chargers available.

Adaptive 5-Stage Charging Algorithm

The Blue Smart IP67 24V 5A Charger uses an advanced 5-stage charging algorithm controlled by a microprocessor. This adaptive system optimises the charging process based on the battery's usage and condition. The 5 stages include bulk, absorption, recondition, float, and storage. This intelligent charging process ensures that your battery is charged safely and efficiently, which helps to extend its life and improve its performance.

Bluetooth Smart Enabled

The charger features Bluetooth connectivity, allowing you to monitor and configure it using the VictronConnect app on your smartphone or tablet. This wireless capability enables you to check the status of your battery, adjust settings, and update firmware from a distance, providing you with complete control over the charging process. The VictronConnect app offers detailed insights and real-time data, making it easier than ever to manage your battery charging.

Comprehensive Safety Features

Safety is paramount with the Blue Smart IP67 24V 5A Charger. It includes multiple safety features such as protection against overheating, short circuits, and reverse polarity connections. If the internal temperature rises above 50°C, the charger will automatically reduce the output current to prevent damage. Additionally, the charger has a user-replaceable fuse to protect against incorrect connections, ensuring safe and reliable operation.

Technical Specifications

• Input Voltage Range: 180-265 VAC, 45-65 Hz
• Efficiency: Up to 95%
• No Load Power Consumption: 0.5W
• Charge Voltage (Absorption): Normal: 28.8V, High: 29.4V, Li-ion: 28.4V
• Charge Voltage (Float): Normal: 27.6V, High: 27.6V, Li-ion: 27.0V
• Charge Voltage (Storage): Normal: 26.4V, High: 26.4V, Li-ion: 27.0V
• Charge Current: Normal Mode: 5A, Low Mode: 1.6A
• Operating Temperature Range: -30°C to +60°C (full rated output up to 40°C, derate 3% per °C above 40°C)
• Humidity: Up to 100%
• Protection Category: IP67
• Weight: 0.9 kg
• Dimensions (h x w x d): 85 x 211 x 60 mm
• Standards: EN 60335-1, EN 60335-2-29, EN 55014-1, EN 61000-6-3, EN 61000-3-2

Installation Steps

Preparation:

Ensure the area around the battery and charger is well-ventilated. Do not cover the charger or place any objects on top of it. Verify that the battery you are charging is not frozen and is suitable for recharging.

Connection:

• Step 1: Connect the DC cables to the battery terminals. Attach the black cable to the negative terminal and the red cable to the positive terminal. Make sure the connections are secure and clean to avoid any short circuits.
• Step 2: Plug the AC power cable into a properly earthed mains power outlet. The green LED will illuminate, indicating that the charger is powered on.

Charging Process:

• Step 1: Select the appropriate charge mode for the battery type using the VictronConnect app. You can choose from normal, high, and Li-ion modes. Set the maximum charge current according to the battery specifications.
• Step 2: The charger will automatically start the charging process. The yellow LED will blink fast during the bulk stage, slow during the absorption stage, and remain solid during the float stage. When the yellow LED turns off, the charger has entered storage mode.

Monitoring:

Use the VictronConnect app to monitor the charging progress, view detailed statistics, and make any necessary adjustments. The app provides real-time updates and historical data for up to 40 charge cycles, giving you full visibility into the charging process.

Completion:

Once the battery is fully charged, the charger will enter float mode. To stop charging, disconnect the AC power cable from the mains outlet. Then, disconnect the DC cables from the battery, starting with the negative terminal.

The Blue Smart IP67 24V 5A Charger is the perfect solution for anyone who needs a reliable, efficient, and durable battery charger. Its advanced features, high efficiency, and robust construction make it suitable for a wide range of applications, from marine and automotive to industrial settings. With easy installation, comprehensive safety features, and the convenience of Bluetooth connectivity, this charger ensures that your batteries are always in optimal condition. Whether you’re a professional or a hobbyist, the Blue Smart IP67 Charger delivers the performance and reliability you need to keep your batteries charged and ready to go. Choose the Blue Smart IP67 24V 5A Charger for smarter, safer, and more efficient battery charging.
