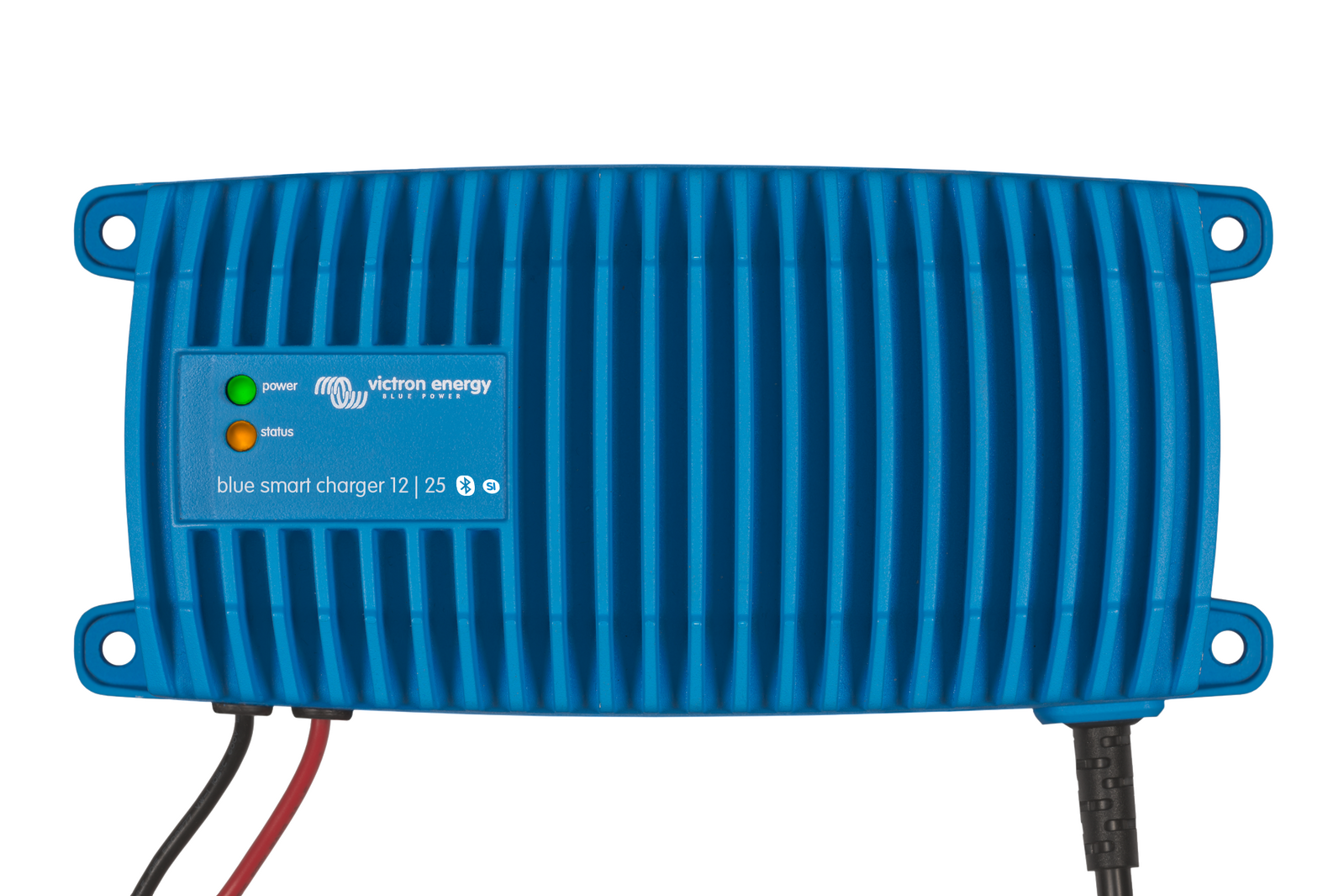

The Blue Smart IP67 12V 25A Charger is a state-of-the-art battery charger designed to deliver exceptional performance and reliability in the most demanding environments. Engineered by Victron Energy, this charger is perfect for users who require robust, efficient, and versatile charging solutions for their vehicles, boats, and off-grid systems. With its advanced features, durable construction, and user-friendly interface, the Blue Smart IP67 Charger sets a new standard in battery charging technology.  This charger can operate at two amp rates: a standard 25A and a low 10A mode.

Waterproof and Durable Design

The Blue Smart IP67 Charger is completely encapsulated and features a waterproof, shockproof, and ignition-protected design. The charger’s casing is made of cast aluminum and the electronics are molded in resin, ensuring protection against water, oil, dirt, and other contaminants. This makes it ideal for use in harsh environments, such as marine and industrial applications.

High Efficiency

With an impressive efficiency of up to 95%, the Blue Smart IP67 Charger wastes significantly less energy compared to traditional chargers. This high efficiency translates to less heat generation, cooler operation, and longer service life. Additionally, the charger’s power consumption reduces to less than one watt when the battery is fully charged, making it one of the most energy-efficient chargers on the market.

Adaptive 5-Stage Charge Algorithm

The charger features a microprocessor-controlled adaptive battery management system that optimises the charging process based on the battery’s usage. The 5-stage charge algorithm (bulk, absorption, recondition, float, and storage) ensures that the battery is charged safely and efficiently, extending its lifespan and performance. The adaptive feature automatically adjusts the charging process to suit the specific needs of each battery, providing a tailored charging experience.

Bluetooth Smart Enabled

The Blue Smart IP67 Charger is equipped with Bluetooth connectivity, allowing users to monitor and configure the charger using the VictronConnect app on their smartphone or tablet. This wireless solution enhances the functionality of the charger, enabling easy firmware updates, real-time monitoring, and customised settings adjustments. The app provides detailed insights into the charging process, ensuring optimal battery care.

Safety and Protection

The charger incorporates several safety features, including protection against overheating, short circuits, and reverse polarity connections. If the internal temperature rises above 50°C, the output current will reduce, but the charger will not fail. Additionally, the charger includes a user-replaceable fuse to protect against incorrect connections, ensuring safe and reliable operation.

Technical Specifications:

• Input Voltage Range: 180-265 VAC, 45-65 Hz
• Efficiency: 95%
• No Load Power Consumption: 0.5W
• Charge Voltage (Absorption): Normal: 14.4V, High: 14.7V, Li-ion: 14.2V
• Charge Voltage (Float): Normal: 13.8V, High: 13.8V, Li-ion: 13.5V
• Charge Voltage (Storage): Normal: 13.2V, High: 13.2V, Li-ion: 13.5V
• Charge Current: Normal Mode: 25A, Low Mode: 10A
• Operating Temperature Range: -30°C to +60°C (full rated output up to 40°C, derate 3% per °C above 40°C)
• Humidity: Up to 100%
• Protection Category: IP67
• Weight: 2.4 kg
• Dimensions (h x w x d): 99 x 219 x 65 mm
• Standards: EN 60335-1, EN 60335-2-29, EN 55014-1, EN 61000-6-3, EN 61000-3-2

Installation Steps:

Preparation:

Ensure that the area around the battery and charger is well-ventilated. Do not cover the charger or place any objects on top of it. Verify that the battery to be charged is not frozen and is suitable for recharging.

Connection:

• Step 1: Connect the DC cables to the battery terminals. Connect the black cable to the battery's negative terminal and the red cable to the positive terminal. Ensure a secure and clean connection to avoid any short circuits.
• Step 2: Plug the AC power cable into a properly earthed mains power outlet. The green LED will illuminate, indicating that the charger is powered on.

Charging Process:

• Step 1: Select the appropriate charge mode for the battery type using the VictronConnect app. Options include normal, high, and Li-ion modes. Set the maximum charge current as per the battery specifications.
• Step 2: The charger will automatically start the charging process. The yellow LED will blink fast during the bulk stage, slow during the absorption stage, and remain solid during the float stage. When the yellow LED is off, the charger has entered storage mode.

Monitoring:

Use the VictronConnect app to monitor the charging progress, view detailed statistics, and make any necessary adjustments. The app provides real-time updates and historical data for up to 40 charge cycles.

Completion:

Once the battery is fully charged, the charger will enter float mode. You can disconnect the AC power cable from the mains outlet to stop charging. Disconnect the DC cables from the battery, starting with the negative terminal.

The Blue Smart IP67 12V 25A Charger is a versatile and reliable solution for anyone needing a robust and efficient battery charger. Its advanced features, high efficiency, and durable construction make it ideal for various applications, from marine to industrial environments. With easy installation, comprehensive safety features, and the convenience of Bluetooth connectivity, this charger ensures optimal battery maintenance and longevity. Whether you're a professional or an enthusiast, the Blue Smart IP67 Charger provides the performance and reliability you need to keep your batteries in peak condition.
