Optimise Your Solar System with BlueSolar MPPT 100/50
Victron Energy SCC020050200
SKU code: VE-SCC020050200

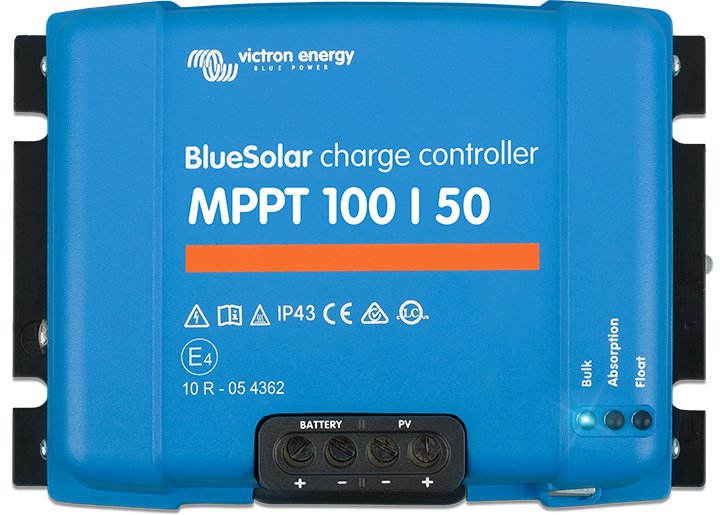

BlueSolar Charge Controllers MPPT 100/50
- 12V/24V auto select battery voltage
- 50A rated charge current
- 700W @12V or 1400W @24V maximum PV power
- Automatic load disconnect
- 98% peak efficiency
- Reverse polarity (fuse) protection, output short circuit protection and over temperature protection
Introduction
Maximise your solar system's potential with the Victron Energy BlueSolar MPPT 100/50 Charge Controller, engineered to optimise the performance of solar panels and ensure efficient battery charging. This advanced device is the cornerstone for achieving superior efficiency in medium to large solar power setups.
Efficient Solar Energy Conversion
At the heart of the BlueSolar MPPT 100/50 lies the cutting-edge Maximum Power Point Tracking (MPPT) technology. This feature continuously monitors solar panel output to maximise energy production, significantly enhancing the system's overall yield, especially under fluctuating weather conditions.
Adaptable Power Management
Designed to accommodate a broad range of system sizes, the BlueSolar MPPT 100/50 can handle up to 100V of photovoltaic open circuit voltage, with a 50A charge current. This capability makes it suitable for systems up to 700W in 12V configurations and 1400W in 24V setups, extending its applicability to various installation requirements.
Intelligent Battery Charging
Understanding the critical role of battery health, the BlueSolar MPPT 100/50 employs a sophisticated, multi-stage charging algorithm that adjusts to the specific needs of your batteries. Whether they're lead-acid, AGM, gel, or lithium, the controller ensures they're charged efficiently and safely, prolonging their lifespan and enhancing storage capacity.
Remote Monitoring and VE.Direct Connectivity
With the inclusion of the VE.Direct port, the BlueSolar MPPT 100/50 offers direct communication capabilities with computers and other Victron devices. This feature allows for easy monitoring, configuration, and updates of the system, providing users with detailed control over their solar power management. Coupled with optional Bluetooth connectivity, system monitoring and adjustments become effortlessly accessible through the VictronConnect app.
Comprehensive System Protection
With an array of built-in safety features, including overcharge, reverse polarity, short circuit, and overheating protection, the BlueSolar MPPT 100/50 ensures the reliability and longevity of your solar installation, providing peace of mind in system safety.
Conclusion
The Victron Energy BlueSolar MPPT 100/50 Charge Controller stands as an essential component for enhancing the efficiency and reliability of solar power systems. With its advanced MPPT technology, robust design, and the added functionality of the VE.Direct port, it delivers optimal performance, ensuring your solar setup operates at its best.
Controller Type | MPPT |
Bluetooth | No |
Warranty | 60 |
Model # | SCC020050200 |
Barcode # | 08719076025566 |
