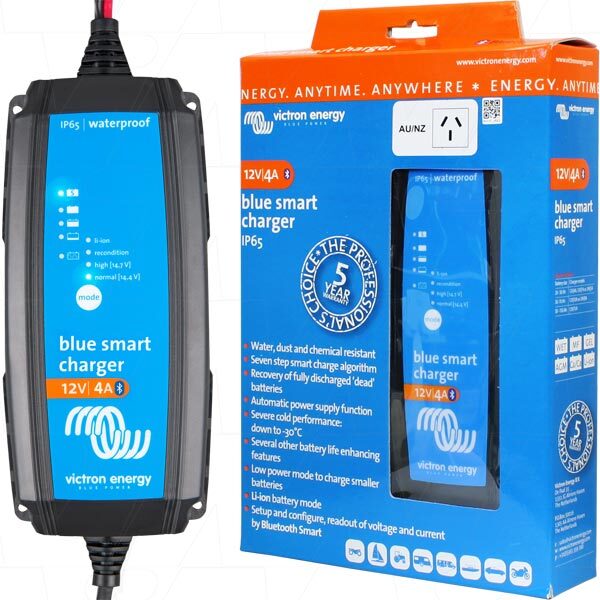

Victron Blue Smart IP65 12/4 Battery Charger: Compact, Efficient, and Reliable for Small 12V Batteries

The Victron Blue Smart IP65 12/4 Battery Charger is a highly efficient, compact, and versatile charger designed for the maintenance and care of small 12V batteries. Ideal for a variety of applications, including automotive, marine, and recreational vehicles, this charger offers advanced features in a durable, water-resistant design. The Blue Smart IP65 12/4 is engineered to provide reliable performance and ease of use, making it an excellent choice for anyone needing to keep their batteries in peak condition.


Key Features:

High Efficiency: The Victron Blue Smart IP65 12/4 operates with an efficiency of up to 94%, ensuring minimal energy loss and reduced heat generation. This high efficiency helps extend the life of both the charger and the battery, making it an energy-conscious choice.

Seven-Stage Adaptive Charging: The charger features a sophisticated seven-stage charging algorithm that adjusts to the condition of your battery. The stages—Test, Bulk, Absorption, Recondition, Float, Storage, and Refresh—are designed to optimise the charging process, ensuring that your battery is charged safely and maintained in optimal condition.

Bluetooth Smart Technology: Integrated Bluetooth connectivity allows you to monitor and control the charging process remotely via the VictronConnect app. This feature provides convenience and flexibility, enabling you to keep track of your battery’s status from your smartphone or tablet.

Water-Resistant and Durable: With an IP65 rating, the charger is protected against dust and water ingress, making it suitable for use in various environments, including workshops, garages, and marine settings. Its robust design ensures reliable performance even in challenging conditions.

Temperature Compensation: The charger automatically adjusts the charging voltage based on the ambient temperature, ensuring optimal performance in both hot and cold climates. This feature is particularly useful for maintaining battery health across a wide range of operating conditions.

Reconditioning Mode: The reconditioning mode is specifically designed to revive deeply discharged batteries. By applying a higher voltage during the absorption phase, it helps prevent sulfation—a common issue in lead-acid batteries—thereby extending battery life.

Low Current Mode: The low current mode reduces the maximum charge current, making it ideal for charging smaller batteries without risking damage. This mode ensures that delicate batteries receive the appropriate level of care.

Silent Operation: The Victron Blue Smart IP65 12/4 operates silently, thanks to its fanless design. This makes it perfect for use in noise-sensitive environments or for overnight charging, where quiet operation is essential.


Technical Specifications:

Input Voltage Range: 180-265V AC, 45-65Hz
Output Voltage: 12V
Charge Current: 4A (Normal mode), 2A (Low current mode)
Efficiency: Up to 94%
Protection Category: IP65 (dust-tight and protected against water jets)
Operating Temperature: -40°C to +60°C (full rated output up to 30°C)
Dimensions: 45 x 81 x 182mm
Weight: 0.9 kg
Battery Types Supported: Lead-acid (AGM, GEL, Calcium), LiFePO4
Charge Algorithm: Seven-stage adaptive with optional recondition mode
Bluetooth Connectivity: Yes, via VictronConnect app
Certifications: EN 60335-1, EN 60335-2-29, EN 55014-1, EN 61000-6-3, EN 61000-3-2

Installation and Setup:

Setting up the Victron Blue Smart IP65 12/4 Battery Charger is a straightforward process, making it easy for both professionals and DIY enthusiasts to start using it right away.

Unpack the Charger: Begin by unpacking the charger and ensuring that all components are present, including the charger unit, DC cables, and AC power cord.

Connect the DC Cables:  Start by connecting the red and black DC cables to the charger, then the battery terminals. Ensure the connections are secure and that the terminals are clean to avoid any potential issues.

Connect to AC Power: Plug the AC power cord into a mains outlet. The charger will automatically power on, and the LEDs will indicate the current status of the charging process.

Select the Charging Mode: Use the MODE button on the charger to cycle through the available charging modes (Normal, High, or Li-ion) until the desired mode is selected. The corresponding LED will illuminate to confirm the selected mode.

Monitor Charging via Bluetooth: For detailed monitoring, download the VictronConnect app on your smartphone or tablet. Pair your device with the charger via Bluetooth to view the charging status, make adjustments, or update the firmware.

Charging Cycle: The charger will automatically proceed through the charging stages, adapting to the battery's condition. The LEDs on the charger and the VictronConnect app provide real-time feedback on the progress.

Completion and Float Mode: Once the battery is fully charged, the charger will enter Float mode, maintaining the battery at 100% charge. You can safely disconnect the charger at this stage, though it can also be left connected to maintain the battery if it is not in use.

Maintenance Charging: If the battery will be idle for an extended period, the charger’s Storage mode will help maintain the battery's health by preventing sulfation, ensuring it remains in good condition for future use.


The Victron Blue Smart IP65 12/4 Battery Charger is a dependable and versatile charging solution that combines advanced technology with a compact and durable design. Whether you're maintaining the battery of a vehicle, motorcycle, or smaller equipment, this charger offers the features and performance needed to keep your batteries in optimal condition. With its high efficiency, intelligent charging algorithm, and user-friendly interface, the Blue Smart IP65 12/4 is an excellent choice for those who require a reliable and efficient charger. Make the smart choice with the Victron Blue Smart IP65 12/4 Battery Charger and enjoy the peace of mind that comes with knowing your batteries are in good hands.
