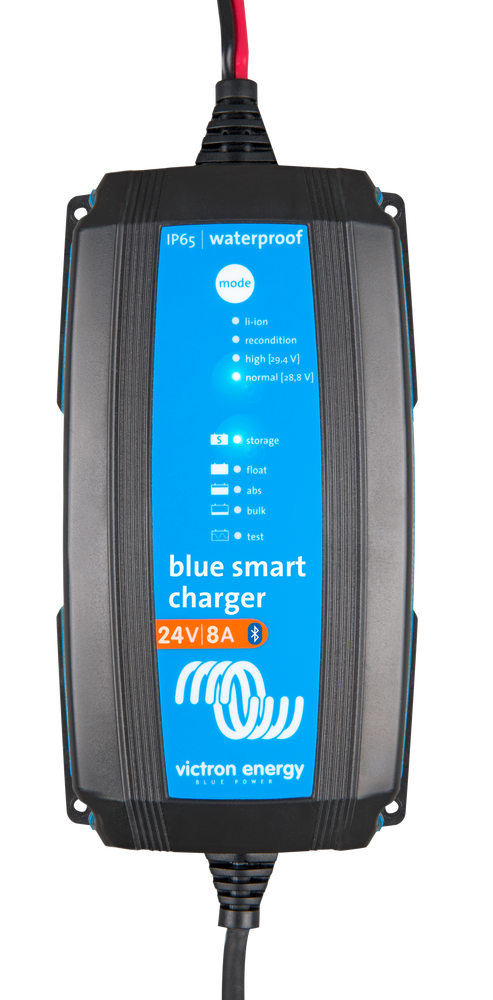

Victron Blue Smart IP65 24V/8A Battery Charger: Powerful and Reliable Charging for 24V Batteries

The Victron Blue Smart IP65 24V/8A Battery Charger is a high-performance, versatile, and efficient charger designed specifically for maintaining and charging 24V batteries. Ideal for a wide range of applications, including marine, automotive, industrial, and off-grid power systems, this charger offers advanced features that ensure reliable, safe, and efficient battery maintenance. Its robust, water-resistant design combined with intelligent charging technology makes the Blue Smart IP65 24V/8A an excellent choice for anyone looking to keep their 24V batteries in optimal condition.

Key Features

High Efficiency: The Victron Blue Smart IP65 24V/8A operates with an efficiency of up to 95%, minimizing energy loss and heat generation. This high efficiency helps conserve energy, extends the life of both the charger and the battery, and ensures cooler operation.

Seven-Stage Adaptive Charging: The charger utilizes a sophisticated seven-stage charging algorithm that adjusts to the condition of your battery. The stages — Test, Bulk, Absorption, Recondition, Float, Storage, and Refresh — ensure your battery is charged safely and maintained in the best possible condition.

Bluetooth Smart Technology: With built-in Bluetooth connectivity, you can monitor and control the charging process remotely via the VictronConnect app. This feature provides convenience and flexibility, allowing you to keep track of your battery’s status from your smartphone or tablet.

Water-Resistant and Durable: The IP65 rating ensures that the charger is protected against dust and ingress, making it suitable for use in various environments, including workshops, garages, and outdoor settings. Its robust construction ensures reliable performance even in challenging conditions.

Temperature Compensation: The charger automatically adjusts the charging voltage based on the ambient temperature, ensuring optimal performance in both hot and cold climates. This feature is crucial for maintaining battery health and longevity across a wide range of operating conditions.

Reconditioning Mode: Designed to revive deeply discharged batteries, the reconditioning mode applies a higher voltage during the absorption phase. This helps prevent sulfation—a common issue in lead-acid batteries—thereby extending battery life.

Low Current Mode: The low current mode reduces the maximum charge current, making it ideal for charging smaller 24V batteries or delicate battery types without risking damage.

Silent Operation: The Victron Blue Smart IP65 24V/8A operates silently due to its fanless design, making it perfect for use in noise-sensitive environments or for overnight charging.

Technical Specifications

Input Voltage Range: 180-265V AC, 45-65Hz
Output Voltage: 24V
Charge Current: 8A (Normal mode), 3A (Low current mode)
Efficiency: Up to 95%
Protection Category: IP65 (dust-tight and protected against water ingress)
Operating Temperature: -40°C to +60°C (full rated output up to 30°C)
Dimensions: 60 x 105 x 190mm
Weight: 0.9 kg
Battery Types Supported: Lead-acid (AGM, GEL, Calcium), LiFePO4
Charge Algorithm: Seven-stage adaptive with optional recondition mode
Bluetooth Connectivity: Yes, via VictronConnect app
Certifications: EN 60335-1, EN 60335-2-29, EN 55014-1, EN 61000-6-3, EN 61000-3-2

Installation and Setup

Setting up the Victron Blue Smart IP65 24V/8A Battery Charger is straightforward, making it easy for both professionals and DIY enthusiasts to get started.

Unpack the Charger: Start by unpacking the charger and ensuring that all components are present, including the charger unit, DC cables, and AC power cord.

Connect the DC Cables: Attach the red DC cable to the positive terminal and the black DC cable to the negative terminal of the battery. Ensure that the connections are secure and that the terminals are clean to prevent any potential issues during charging.

Connect to AC Power: Plug the AC power cord into a mains outlet. The charger will automatically power on, and the LEDs will indicate the current status of the charging process.

Select the Charging Mode: Use the MODE button on the charger to cycle through the available charging modes (Normal, High, or Li-ion) until the desired mode is selected. The corresponding LED will illuminate to confirm the selected mode.

Monitor Charging via Bluetooth: For detailed monitoring, download the VictronConnect app on your smartphone or tablet. Pair your device with the charger via Bluetooth to view the charging status, make adjustments, or update the firmware.

Charging Cycle: The charger will automatically proceed through the charging stages, adapting to the battery's condition. The LEDs on the charger and the VictronConnect app provide real-time feedback on the progress.

Completion and Float Mode: Once the battery is fully charged, the charger will enter Float mode, maintaining the battery at 100% charge. You can safely disconnect the charger at this stage, though it can also be left connected to maintain the battery if it is not in use.

Maintenance Charging: If the battery will be idle for an extended period, the charger’s Storage mode will help maintain the battery's health by preventing sulfation, ensuring it remains in good condition for future use.

Conclusion

The Victron Blue Smart IP65 24V/8A Battery Charger is a reliable and versatile charging solution that combines advanced technology with a compact and durable design. Whether you're maintaining the battery of a boat, vehicle, or industrial equipment, this charger offers the features and performance needed to keep your 24V batteries in optimal condition. With its high efficiency, intelligent charging algorithm, and user-friendly interface, the Blue Smart IP65 24V/8A is an excellent choice for those who require a dependable and efficient charger. Choose the Victron Blue Smart IP65 24V/8A Battery Charger and enjoy the peace of mind that comes with knowing your batteries are in good hands.
