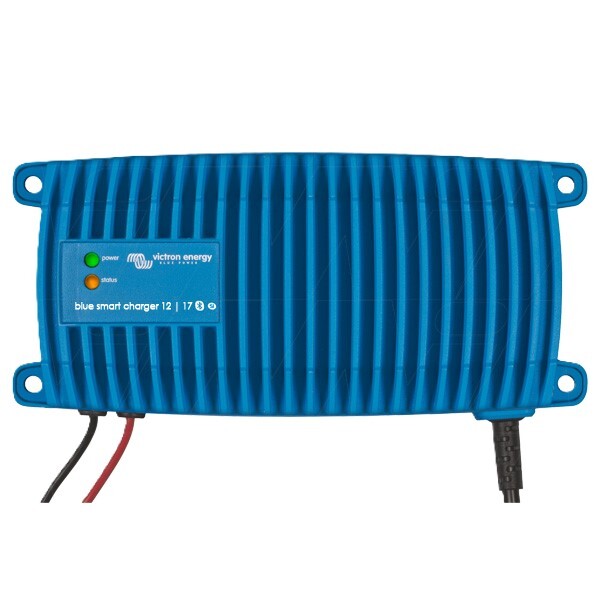

Blue Smart IP67 12V 17A Charger: The Ultimate Waterproof Battery Charger

Welcome to the world of advanced battery charging with the Blue Smart IP67 12V 17A Charger. This state-of-the-art charger, developed by Victron Energy, is engineered to deliver exceptional performance, durability, and efficiency. Whether you are a professional in the marine or automotive industry or a DIY enthusiast, this charger offers the perfect solution for maintaining and extending the life of your batteries. With its robust design, intelligent charging algorithm, and convenient Bluetooth connectivity, the Blue Smart IP67 12V 17A Charger stands out as the ultimate choice for those seeking reliable and efficient battery charging. This charger can operate at two amp rates: a standard 17A and a low 6A mode.

Waterproof and Durable Design

The Blue Smart IP67 12V 17A Charger is built to withstand the harshest conditions. Its fully encapsulated, waterproof, and shockproof design ensures that it remains protected against water, dust, oil, and other contaminants. The rugged construction features a cast aluminum casing and resin-encapsulated electronics, making it ideal for use in marine environments, off-road vehicles, and industrial applications.

High Efficiency

Achieving up to 95% efficiency, the Blue Smart IP67 Charger minimises energy waste and heat generation. This high efficiency not only ensures cooler operation and longer lifespan but also reduces power consumption significantly. When the battery is fully charged, the charger's power consumption drops to less than one watt, making it one of the most energy-efficient chargers available.

Adaptive 5-Stage Charging Algorithm

The charger incorporates a sophisticated, microprocessor-controlled adaptive battery management system. This system optimises the charging process based on the battery's usage, ensuring a safe and efficient charge every time. The 5-stage charging algorithm includes bulk, absorption, recondition, float, and storage stages. This comprehensive approach maximises battery health, performance, and longevity.

Bluetooth Smart Enabled

Monitoring and configuring the charger has never been easier. The Blue Smart IP67 Charger comes with Bluetooth connectivity, allowing you to use the VictronConnect app on your smartphone or tablet. This wireless feature provides real-time insights into the charging process, firmware updates, and the ability to customise settings to meet your specific needs.

Safety and Protection

The Blue Smart IP67 12V 17A Charger is designed with multiple safety features, including protection against overheating, short circuits, and reverse polarity connections. The charger automatically reduces output current if the internal temperature rises above 50°C, ensuring safe and reliable operation. Additionally, it includes a user-replaceable fuse to safeguard against incorrect connections.

Technical Specifications:

• Input Voltage Range: 180-265 VAC, 45-65 Hz
• Efficiency: Up to 95%
• No Load Power Consumption: 0.5W
• Charge Voltage (Absorption): Normal: 14.4V, High: 14.7V, Li-ion: 14.2V
• Charge Voltage (Float): Normal: 13.8V, High: 13.8V, Li-ion: 13.5V
• Charge Voltage (Storage): Normal: 13.2V, High: 13.2V, Li-ion: 13.5V
• Charge Current: Normal Mode: 17A, Low Mode: 6A
• Operating Temperature Range: -30°C to +60°C (full rated output up to 40°C, derate 3% per °C above 40°C)
• Humidity: Up to 100%
• Protection Category: IP67
• Weight: 2.4 kg
• Dimensions (h x w x d): 99 x 219 x 65 mm
• Standards: EN 60335-1, EN 60335-2-29, EN 55014-1, EN 61000-6-3, EN 61000-3-2

Installation Steps:

Preparation:

Before starting, ensure that the area around the battery and charger is well-ventilated. Do not cover the charger or place any objects on top of it. Confirm that the battery to be charged is not frozen and is suitable for recharging.

Connection:

• Step 1: Connect the DC cables to the battery terminals. Attach the black cable to the battery's negative terminal and the red cable to the positive terminal. Make sure the connections are secure and clean to avoid short circuits.

• Step 2: Plug the AC power cable into a properly earthed mains power outlet. The green LED will illuminate, indicating that the charger is powered on.

Charging Process:

• Step 1: Select the appropriate charge mode for the battery type using the VictronConnect app. Options include normal, high, and Li-ion modes. Set the maximum charge current according to the battery specifications.

• Step 2: The charger will automatically begin the charging process. The yellow LED will blink fast during the bulk stage, slow during the absorption stage, and remain solid during the float stage. When the yellow LED is off, the charger has entered storage mode.

Monitoring:

Use the VictronConnect app to monitor the charging progress, view detailed statistics, and make any necessary adjustments. The app provides real-time updates and historical data for up to 40 charge cycles.

Completion:

Once the battery is fully charged, the charger will enter float mode. You can disconnect the AC power cable from the mains outlet to stop charging. Disconnect the DC cables from the battery, starting with the negative terminal.

The Blue Smart IP67 12V 17A Charger is a versatile and reliable solution for all your battery charging needs. Its advanced features, high efficiency, and durable construction make it perfect for marine, automotive, and other demanding applications. With easy installation, comprehensive safety features, and the convenience of Bluetooth connectivity, this charger ensures optimal battery maintenance and longevity. Whether you're a professional or an enthusiast, the Blue Smart IP67 Charger provides the performance and reliability you need to keep your batteries in peak condition. Choose the Blue Smart IP67 12V 17A Charger for a smarter, safer, and more efficient charging experience.
