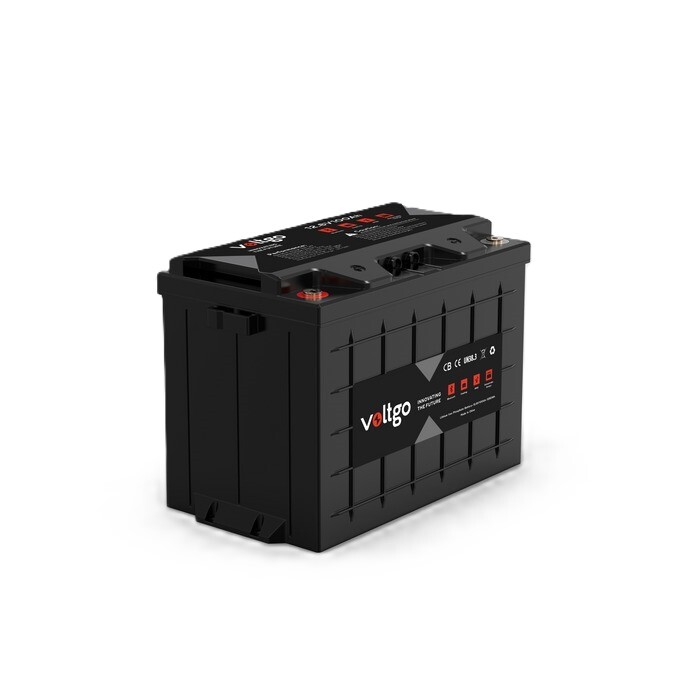

VoltGo VLRV1280A Lithium Iron Phosphate Battery: Ultimate Power and Advanced Features

The VoltGo VLRV1280A Lithium Iron Phosphate (LFP) Battery is a top-tier energy storage solution designed to meet the demands of modern, power-intensive applications. Whether you need reliable power for RVs, solar systems, or marine use, this battery offers a unique blend of safety, durability, and advanced technology.


Key Features and Benefits

Exceptional Safety and Durability:

  • The VLRV1280A leverages lithium iron phosphate technology, which is renowned for its stability and safety. The battery includes an Advanced Battery Management System (BMS), which safeguards against over-voltage, under-voltage, short circuits, and temperature extremes. This ensures that the battery operates safely and efficiently, even in challenging conditions.
  • With a lifespan of over 6000 cycles at 80% Depth of Discharge (DoD), this battery is designed for long-term use, providing up to 15 years of reliable service. Its durability makes it a cost-effective choice, as frequent replacements are not necessary.

Compact and Lightweight Design:

  • Weighing just 11.2 kg, the VLRV1280A is easy to handle and install, even in tight spaces. Its compact dimensions (330 mm x 172 mm x 220 mm) make it a versatile option for a variety of applications, including RVs, 4x4 vehicles, and small solar energy systems.

High Performance:

  • The VLRV1280A delivers a 100Ah capacity with 1280Wh of energy, ensuring consistent power for extended periods. This makes it ideal for off-grid camping, powering boats, or supporting home solar systems.

Advanced Monitoring and Control:

  • This battery features Bluetooth connectivity, allowing users to monitor its status in real-time via the VoltGo app, available on iOS and Android. Through the app, users can access critical information such as voltage, current, temperature, and state of charge (SoC), enabling efficient power management.
  • The inbuilt heating system activates in sub-zero temperatures, ensuring that the battery charges efficiently even in cold climates. This feature is essential for those who rely on their battery in extreme weather conditions.

Seamless Compatibility with Victron Cerbo Equipment:

  • The VLRV1280A is fully compatible with Victron Cerbo GX and Victron Energy Ekrano GX devices, allowing for seamless integration into your power management system. The battery communicates effectively with Victron’s monitoring and control equipment via the VE.Can to CAN-bus BMS type A Cable (not included), enhancing system efficiency and battery lifespan.

Environmental and Durability Advantages:

  • With an IP65 rating, the VLRV1280A is protected against dust and water, making it ideal for outdoor and marine applications. The battery’s rugged design ensures it can withstand harsh conditions, delivering reliable power wherever it’s needed.

Scalability and Flexibility:

  • The VLRV1280A can be connected in series (up to 4S) or parallel (up to 4P), offering scalability to meet growing power needs. Whether you're upgrading an RV’s electrical system or expanding a solar energy storage setup, this battery provides the flexibility you need.

The VoltGo VLRV1280A stands out as a premium choice for those who require a reliable, long-lasting, and efficient power solution. Its advanced features, including a robust BMS, Bluetooth monitoring, inbuilt heating, and seamless compatibility with Victron equipment, make it ideal for demanding applications. Whether you're powering an RV, a solar system, or a marine vessel, the VLRV1280A offers unparalleled performance and peace of mind, making it a valuable investment in quality energy storage.

Technical Specifications:

  • Nominal Voltage: 12.8V
  • Rated Capacity: 100Ah
  • Rated Energy: 1280Wh
  • Cycle Life: ＞6000 (0.5C@ 25℃,80% DOD)
  • Design Life: 15 years
  • Voltage Range: 10-14V
  • Recommended Charge Current: ≤30A
  • Max. Constant Charge Current: 50A
  • Max. Constant Discharging Current: 100A
  • Max. Pulse Discharging Current: 150A
  • Humidity: 5-95% RH
  • Operating Temperature: Charge: -20°C to +45°C; Discharge: -20°C to +55°C; Storage: -20°C to +45°C
  • Terminals: M8
  • Dimensions (W x D x H): 330 mm x 172 mm x 220 mm
  • Weight: 11.2 Kg
  • Ingress Protection Rating: IP65
  • Certifications: UL1973, UN38.3, IEC62619

Datasheet

User Manual

Voltage12.8
Amp Hour100
Length MM330
Width MM172
Height MM220
Warranty120
Post typeM8
Weight KG11.2
Bluetooth BMSYes
Model # VLRV1280A

Be The First To Review This Product!

Help other Archer Batteries Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

What is the VoltGo VLRV1280A?
It's a 12.8V 100Ah Lithium Iron Phosphate (LFP) battery designed for high-performance energy storage in RVs, solar systems, and marine applications.
Is the VLRV1280A battery waterproof?
It has an IP65 rating, making it resistant to dust and water.
What is the battery's operating temperature range?
The battery operates from -20°C to +55°C for discharging and -20°C to +45°C for charging.
Can the battery be used in cold climates?
Yes, the VLRV1280A includes an inbuilt heater that activates in sub-zero conditions for efficient charging.
Does the VLRV1280A have Bluetooth monitoring?
Yes, it features Bluetooth connectivity, allowing real-time monitoring via the VoltGo app.
What is the battery's maximum discharge current?
The maximum continuous discharging current is 100A, with a pulse discharging current of 150A.
Can the VLRV1280A be connected in series?
Yes, it can be connected in series with up to four batteries (4S).
Can the battery be connected in parallel?
Yes, it supports parallel connections with up to four batteries (4P).
What type of terminals does the VLRV1280A have?
It uses M8 terminals.
Is the battery maintenance-free?
Yes, the VLRV1280A is designed for maintenance-free operation.
What is the recommended charge rate?
The recommended charge rate is ≤30A.
What is the maximum charge rate?
The maximum constant charge rate is 50A.
What certifications does the VLRV1280A have?
It is certified to UL1973, UN38.3, and IEC62619 standards.
How much does the VLRV1280A weigh?
The battery weighs 11.2 kg.
What are the dimensions of the battery?
The dimensions are 330 mm x 172 mm x 220 mm.
Can the battery be used for solar energy storage?
Yes, the VLRV1280A is suitable for small solar storage systems.
Is the battery suitable for RV use?
Absolutely, it is designed specifically for RVs, 4x4 vehicles, and similar applications.
How is the battery installed?
The battery is installed by placing it on a flat surface, securing it if needed, and connecting the terminals using appropriate tools.
Does the battery come with a warranty?
Yes, the VLRV1280A comes with a 10-year manufacturer’s warranty.
Can the VLRV1280A be used in marine applications?
Yes, its IP65 rating and robust design make it ideal for marine use.
How do I monitor the battery’s status?
You can monitor the battery using the VoltGo Bluetooth app available on iOS and Android.
What is the maximum voltage?
The maximum voltage is 14.6.
How often should I check the battery’s charge status?
Regular checks are recommended, especially before and after use, using the Bluetooth app for convenience.
Is the VLRV1280A suitable for off-grid systems?
Yes, it’s perfect for off-grid solar energy storage solutions.
Does the battery need special storage conditions?
For long-term storage, keep the battery at 50-70% charge and in a dry, cool place between -20°C to +45°C.
How do I dispose of the battery at the end of its life?
The battery should be disposed of according to local regulations for lithium batteries, typically through a recycling program.
