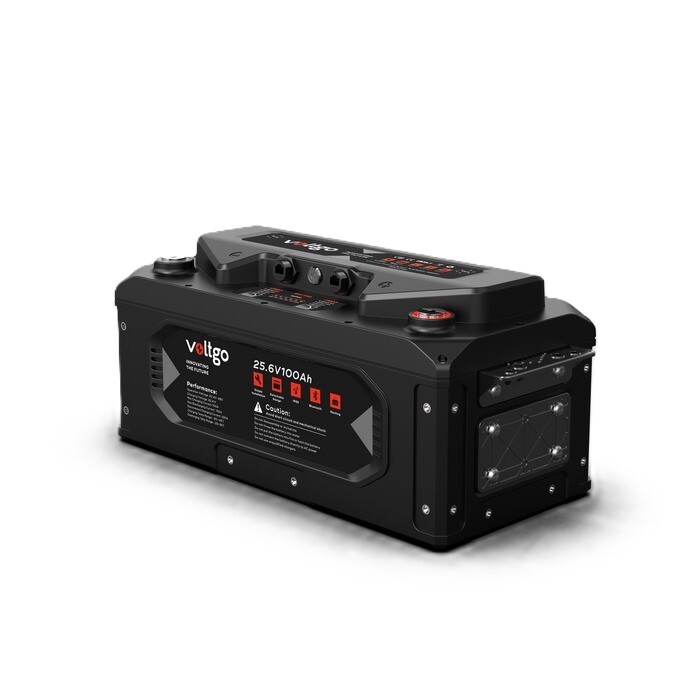

VoltGo VLRV2560B Lithium Iron Phosphate Battery: Advanced Power for Your Energy Needs


The VoltGo VLRV2560B Lithium Iron Phosphate (LFP) Battery is a high-performance energy storage solution designed to meet the demands of various applications, including RVs, solar energy systems, marine environments, and small energy storage systems. With its robust design, advanced safety features, and powerful performance, the VLRV2560B stands out as a reliable and versatile choice for both residential and commercial energy needs.

Key Features and Benefits


Advanced Safety with Intelligent BMS:

• Safety is paramount in energy storage, and the VoltGo VLRV2560B is designed with this in mind. The battery is equipped with an advanced Battery Management System (BMS) that constantly monitors key parameters such as voltage, current, and temperature. This intelligent system provides comprehensive protection against over-voltage, under-voltage, short circuits, and overheating, ensuring the battery operates safely under all conditions. This not only protects the battery but also extends its lifespan, making it a dependable power source for years to come.

Anti-Fire Safety Feature

• One of the standout features of the VLRV2560B is its anti-fire safety technology. The battery is designed with materials and systems that reduce the risk of thermal runaway—a common cause of fires in batteries. This includes the use of flame-retardant materials and an internal design that minimises the likelihood of overheating. Additionally, the battery's BMS plays a crucial role in maintaining safe operating temperatures by regulating charge and discharge cycles, further enhancing its fire resistance. This feature provides peace of mind, especially in applications where safety is a top priority, such as in RVs, boats, and residential energy storage systems.

Durability and Long Life Cycle

• The VLRV2560B is built to last, with a rugged ABS shell that provides excellent impact resistance and insulation. Its IP65 rating means it is both dustproof and waterproof, making it suitable for use in harsh environments, including marine applications and outdoor installations. The battery is designed to operate efficiently in a wide temperature range, from -20°C to 55°C, ensuring reliable performance in both hot and cold climates.

High Performance in a Compact Design

• Despite its compact size, the VLRV2560B delivers impressive power. With a nominal voltage of 25.6V and a capacity of 100Ah, the battery offers an energy output of 2560Wh, making it ideal for applications that require high energy density in a portable format. Whether you’re powering an RV, a boat, or a small solar energy system, the VLRV2560B provides consistent, reliable power to meet your needs.

Real-Time Monitoring with Bluetooth Connectivity

• In today’s connected world, having the ability to monitor your energy storage system in real-time is invaluable. The VLRV2560B features Bluetooth connectivity, allowing you to monitor the battery’s status via the VoltGo app, available for both iOS and Android devices. This app provides detailed insights into the battery’s performance, including voltage, current, temperature, and state of charge (SoC). This real-time data helps you optimise your energy usage, identify potential issues early, and extend the life of your battery.

Low-Temperature Protection and Heating Feature

• Operating in cold climates can be challenging for many batteries, but the VLRV2560B is designed to perform even in sub-zero conditions. The battery includes an inbuilt heating system that automatically activates when the ambient temperature drops between -20°C and 0°C. This feature ensures that the battery can be charged effectively in cold environments, maintaining its performance and longevity even in harsh winter conditions.

Flexible Mounting and Installation Options

• The VLRV2560B is designed with installation flexibility in mind. The battery can be mounted horizontally or vertically, depending on the space available. The integrated metal strips serve multiple purposes—they can be used as handles for easy transport, as floor locks to secure the battery in place, or as rear locks to mount the battery against a wall. This versatility in mounting options simplifies the installation process and makes the battery suitable for a variety of applications, including tight spaces in RVs and boats.

Scalable Power with Parallel Configurations

• For applications that require more power or greater capacity, multiple VLRV2560B batteries can be connected in parallel. This allows you to scale your energy storage system to meet your specific needs, whether you require additional power for extended off-grid living or greater storage capacity for a solar energy system. However, it's important to note that the VLRV2560B is not designed for series connections, ensuring that while capacity can be increased, the voltage remains consistent.

Compatibility with Victron Cerbo Equipment

• The VLRV2560B is fully compatible with Victron Cerbo GX and Victron Energy Ekrano GX devices, allowing it to integrate seamlessly into existing energy management systems. This compatibility enhances the battery's versatility and makes it an ideal choice for users who rely on Victron’s advanced energy management technologies.

Technical Specifications:

• Nominal Voltage: 25.6V
• Nominal Capacity: 100Ah
• Rated Energy: 2560Wh
• Voltage Range: 22.4-28V
• Cut-off Voltage: 20V
• Recommended Charge Current: ≤30
• Max Constant Charge Current: 100A
• Max Constant Discharge Current: 150A
• Max Discharge Pusle: 200A (30 seconds pulse)
• Operating Temperature: Charge: -20°C to +45°C; Discharge: -20°C to +55°C; Storage: -20°C to +45°C
• Humidity: 5-95% RH
• Ingress Protection Rating: IP65
• Terminals: M8
• Certifications: UN38.3
• Weight: 25 kg
• Dimensions: 460 mm x 220 mm x 212 mm

Installation Steps


Unpacking and Inspection:

• Begin by carefully unpacking the VLRV2560B battery and inspecting it for any signs of damage. Ensure that all components, including the battery, terminals, and any included accessories, are present and in good condition.

Site Preparation:

• Choose an appropriate installation site that is clean, dry, and free from excessive dust or moisture. The site should also be within the recommended temperature range for optimal battery performance. Ensure that the installation area is stable and can support the weight of the battery.

Battery Placement:

• Place the battery in the chosen location, ensuring that it is securely positioned. If installing multiple batteries, use the provided metal strips to connect them in parallel, ensuring they are securely locked together. This will help maintain stability and prevent movement during operation.

Connecting the Battery:

• Use appropriate tools to connect the battery terminals, ensuring a secure and proper connection. Follow the recommended torque setting of 12.4Nm for the M8 terminals to avoid over-tightening, which could damage the connections.

System Integration:

• If you are integrating the battery with a Victron Cerbo system or other energy management systems, connect the battery using the appropriate cables. Ensure that all connections are properly configured and that the system recognises the battery.

Power-On and Configuration:

• Once all connections are secure, power on the system and use the VoltGo app or your energy management system to configure the battery settings. Monitor the battery’s performance using the Bluetooth connectivity feature to ensure it is operating correctly.

Final Checks:

• Perform a final inspection to verify that all connections are secure and that the battery is functioning as expected. Make any necessary adjustments before placing the battery into regular operation.

The VoltGo VLRV2560B Lithium Iron Phosphate Battery is a powerful, reliable, and versatile energy storage solution designed to meet the diverse needs of modern energy users. Whether you’re powering an RV, supporting a solar energy system, or ensuring reliable backup power in a marine environment, the VLRV2560B offers the performance, safety, and durability you need. With its advanced features, flexible installation options, and compatibility with leading energy management systems, the VLRV2560B is the ideal choice for those who demand the best in energy storage technology. Invest in the VoltGo VLRV2560B today and experience the future of reliable, high-performance power.
